Products Description

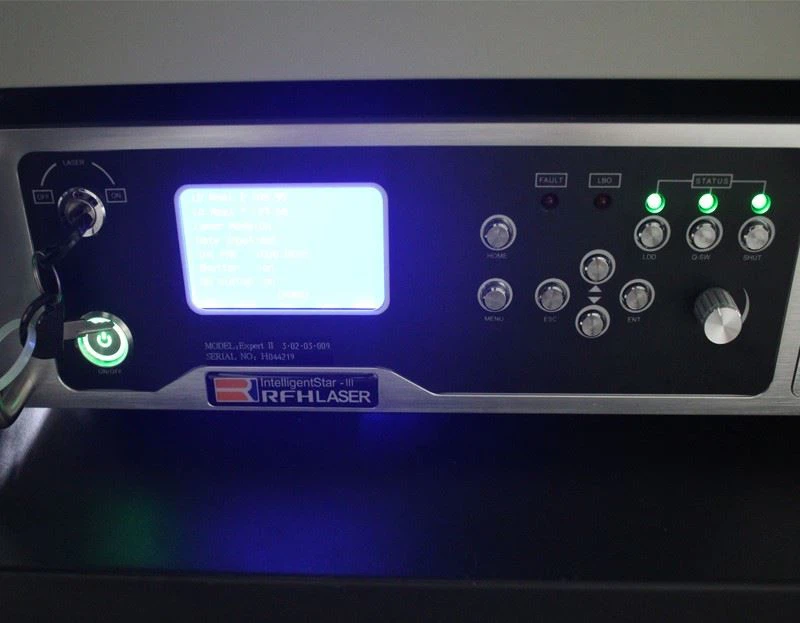

UV Laser Marking Engraving Machine has a stable and excellent performance of the whole machine. It adopts high-performance UV laser and digital high-speed scanning oscillator, with small heat-affected area, which can realize fine marking and is suitable for laser marking of most metal and non-metal materials, especially special materials. UV laser is a very different technology from CO2 and fiber laser technology. UV laser is also known as blue laser beam and this technology has the ability to engrave with low heat generation.
UV Laser Marking Engraving Machine can clearly mark all plastics and other materials that react badly to heat, and is especially suitable for applications such as marking of food and pharmaceutical packaging materials, micro-perforation, high-speed division of glass materials and complex graphic cutting of silicon wafers.
The metal materials that can be engraved by UV laser technology include aluminum, gold, platinum, silver, titanium, brass, stainless steel, etc.
Technical parameter
|
Model |
DS-UV3 |
DS-UV5 |
DS-UV10 |
|
Laser power output |
>3W |
>5W |
>10W |
|
Laser wavelength |
355nm |
||
|
Optional method |
2D |
||
|
Marking area |
100x100mm/150x150mm/200x200mm |
||
|
Pulse energy |
＞200µJ |
||
|
Repetition rate |
20~150KHz |
||
|
Max marking speed |
10,000mm/s |
||
|
Beam quality |
＜1.2 ㎡ |
||
|
Min.line width |
0.01mm |
||
|
Repeat accuracy |
±0.003mm |
||
|
Cooling |
Air/Water cooled |
||
|
Working temp |
15~35 ℃ |
||
|
Gross weight |
190KG |
||
|
Size of machine |
1000x735x1630mm |
||
|
Power supply |
AC220V±10%, 50Hz or AC110V±10%,60Hz |
||
Advantages
UV laser marking engraving machine is used multifunctional humanized design button, EU standard, low voltage control is safe and reliable .
20 million high-speed camera, accurate and reliable scanning and photographing speed, with large light source, work clearly visible.
The universal exhaust pipe can be moved at any angle to absorb the processing dust and make the machine more clean and tidy.
High-precision water chiller, with good cooling control effect, real-time monitoring of the working temperature of the laser to ensure a constant temperature, making the machine work more secure.
High configuration desktop computer, fast storage speed, fast response speed, simple system operation.
Safety control air switch, leakage protection, safe and reliable.
The multi-function universal display handle is convenient for the operator to observe and use the machine.
Three-state and three-color light, real-time monitoring equipment work.
High-speed and high-precision induction trigger
