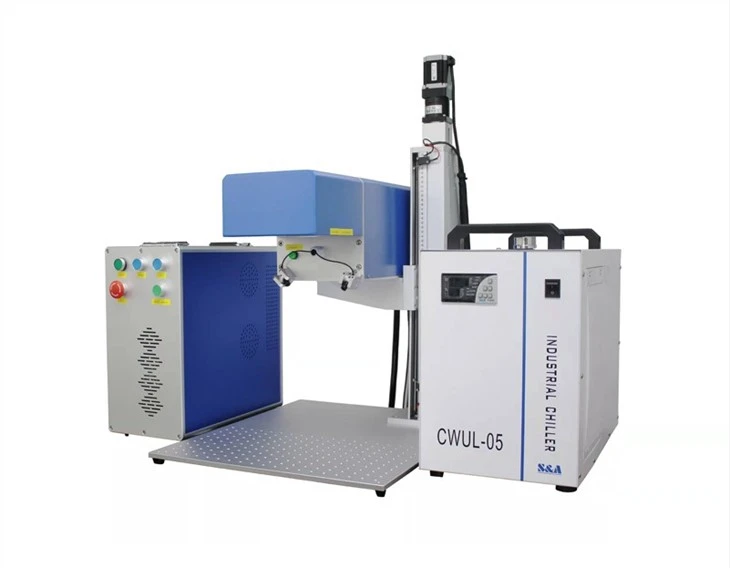

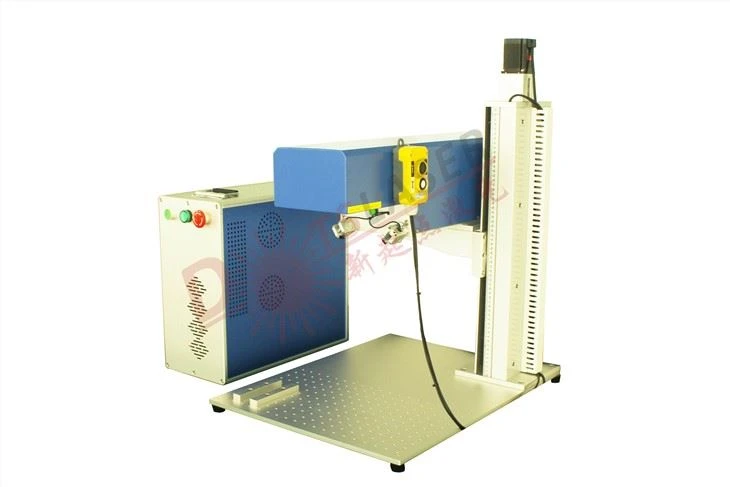

3D UV Laser For Goblet
3D UV Laser For Goblet Products
Products Description
Discover our 3D equipments for Goblet marking and engraving, a reasonable solution designed specifically for the glassware industry. Stunning and intricate 3D designs on goblets can be realized easily, stemware, and other glass products. Personalize your glassware with branding, or decorate them with detailed patterns to impress your customers and take your glass creations to the next level.
Main advantages
Non-Contact Engraving: Our laser marking technology has revolutionized goblet engraving with its non-contact approach, guaranteeing a flawless design every time without any risk of damage or deterioration.
High-resolution 3D Image: With the use of our advanced laser technology, intricate 3D designs, intricate patterns, and striking logos can be perfectly replicated on your glassware with unparalleled precision and a polished finish.
Fast and Efficient Processing: Equipped with powerful UV laser systems. This increased speed enables higher production volumes and greater productivity in the glassware market.
Convenient Interface: With its user-friendly interface, the machine enables operators to effortlessly input designs, tweak settings, and keep a close eye on the engraving process. This seamless operation enhances productivity and minimizes downtime while in production.
Customizable design: With our 3D laser for goblet, you have complete control over the engraving depth, speed, and pulse duration, allowing you to achieve optimal results no matter the glass material or design specifications.
Safe and Reliable Operation: The machine is equipped with vital safety features, including cover enclosures and automatic shutoff mechanisms, to provide a safe and secure working environment for operators.
Applications:
The UV for Goblet is perfectly suited for a wide array of applications within the glassware industry, including but not limited to:
Personalized goblets and gifts
Marking branding and promotional items
Customized glassware for restaurants, bars, hotels, or events
Art and decorative pieces
Parameters
|
NO. |
Name |
UV laser marking machine |
|
1 |
Machine model |
3D DS-UV10/3D DS-UV15 |
|
2 |
Laser power |
＞10W; ＞15W |
|
3 |
Laser wavelength |
355 nm |
|
4 |
Pulse width |
<15ns @40KHz |
|
5 |
Pulse repetition rate |
20~200KHz |
|
6 |
Pulse duration |
＜15ns@30KHz/＜18ns@30KHz |
|
7 |
Beam quality |
＜1.2㎡ |
|
8 |
Beam diameter |
0.8±0.1mm |
|
9 |
Laser level |
Class 4 |
|
10 |
Repeat accuracy |
±0.001mm |
|
11 |
Min.line width |
0.01mm |
|
12 |
Min.character size |
0.15mm |
|
13 |
Marking speed |
≤8,000mm/s |
|
14 |
Working area |
150x150x40mm(standard) |
|
15 |
Cooling |
Air/Water cooled |
|
16 |
Working environment temperature range |
10~30 ℃ |
|
17 |
Humidity range of working environment |
20~80% non-condensing |
|
18 |
Working voltage |
220V,50/60Hz |
|
19 |
Power consumption |
≤800W |
Sample shows
Is UV laser engraving suitable for use on glass?
UV marking has multiple benefits compared to CO2 glass marking. The marks are smooth to the touch, frosted white, and up to 100 times more precise due to the smaller spot size and faster repetition rate of UV lasers. This creates a clean, sandblasted appearance that avoids any cracking or shards. While CO2 marking is reliable and straightforward, its results are not as sharp or accurate as UV marking. Overall, choosing UV marking can lead to more precise and visually pleasing results.
Shipment and Package
FAQ
Q1. Why choose ultraviolet laser marking machine as glass laser marking machine?
A: UV machines are an ideal choice for marking on glass surfaces. They provide high precision, non-contact marking, high speed, versatility, and are easy-to-use. With these benefits, it is no wonder that the UV laser marking machine is preferred over other marking methods.
Q2: Can ultraviolet laser can be mark on the glass that is already coated or treated?
A: Yes, UV markers can be used for marking glass that is already coated or treated. The process is highly efficient and offers excellent marking precision. UV laser marking works by using a focused laser beam to remove or disrupt the protective coating, creating a permanent and highly accurate mark on the underlying glass.
Q3: Can UV Laser Marking Be Successfully Utilized for Marking Glass with Curved Surfaces?
A: UV equipments can be successfully utilized for marking glass with curved surfaces. In fact, it is one of the most effective and efficient techniques available for producing clear and permanent markings on glass. UV lasers are able to produce high-quality and precise markings that are resistant to wear, fading, and scratching. This is because UV lasers use a very short wavelength that can easily penetrate the surface of glass, creating a permanent change in its molecular structure.
Q4: How can ultraviolet laser marking create beautiful and intricate designs on glass?
A: Yes, laser equipments is well-suited for creating intricate patterns or designs on glass. The high precision and detail capabilities of UV lasers allow for the creation of complex markings.Including
Logos and branding
Barcodes and QR codes
Artworks and decorative patterns
Text and numbering
