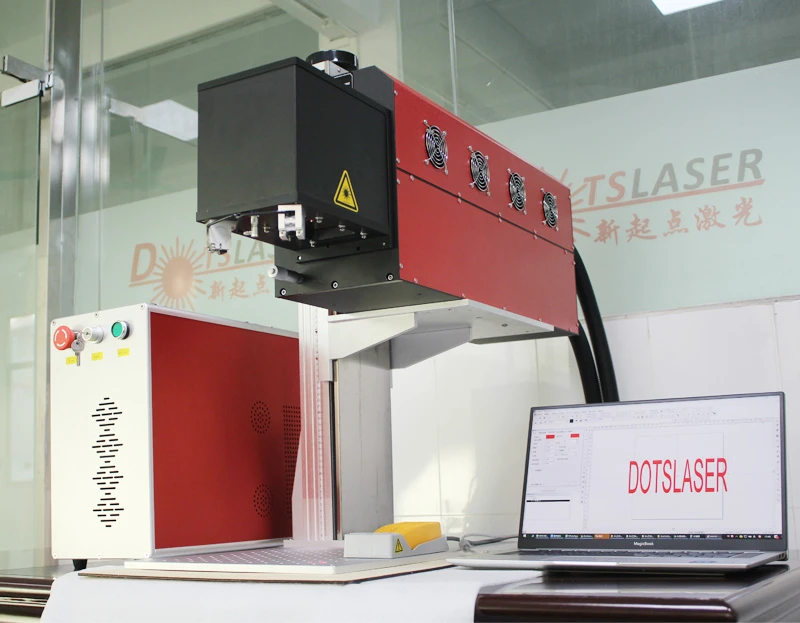

30W CO2 Laser Marking Machine
30W CO2 laser marking machine
Products Description
We proudly present our 30W CO2 Laser Marking Machine, an advanced technology specifically designed for a variety of materials, including glass, wood, acrylic, leather, rubber, and more. This powerful and versatile machine allows you to create permanent, precise, and high-quality markings to enhance the aesthetics and value of your products.
Key Features
Versatile Material Compatibility: The 30W CO2 Laser Marking Machine is compatible with various non-metal materials, making it ideal for industries such as packaging, textile, leather, and more. Some of the supported materials include glass, wood, acrylic, leather, rubber, paper, and plastic.
High-Speed Marking: Equipped with a powerful CO2 laser source, our machine delivers fast engraving and marking speeds without sacrificing precision or quality. This high-speed operation increases productivity and throughput for businesses requiring rapid turnaround times.
High-Quality Markings: Our 30W CO2 Laser Marking Machine produces sharp, clear, and long-lasting markings suitable for both decorative and functional applications. The permanency of the markings ensures resistance to wear and tear, maintaining the professional appearance of your products.
Easy to Operate and User-friendly Interface: With an intuitive control system and user-friendly software, our machine makes it easy to input designs, set marking parameters, and preview the output. This streamlined design allows for efficient setup and operation, minimizing downtime during production.
Flexible Power Settings: The 30W CO2 Laser Marking Machine offers customizable power settings for precise control over the marking depth and quality, depending on the desired application, material type, and specific requirements of your projects.
Durable and Low-Maintenance Design: Constructed with high-quality components, our machine offers a long service life with minimal maintenance required. The robust design ensures reliable operation and reduces the likelihood of costly downtime for repairs or replacement.
Parameters
|
Model |
DS-LMC30 |
DS-LMC60 |
|
Laser power output |
>30W |
>60W |
|
laser wavelength |
9.3μm/10.6μm |
|
|
Marking area |
100x100mm(standard) |
|
|
Pulse frequency |
1~100KHZ |
|
|
Max marking speed |
12,000mm/s |
|
|
Font format |
Dot,single line,True type |
|
|
Code format |
Most 1D & 2D codes available |
|
|
Supported interface |
USB,TCP/IP,RS219 for encoder and sensor |
|
|
Repeat accuracy |
±0.001mm |
|
|
Min.line width |
0.1mm |
|
|
Min.character size |
0.2mm |
|
|
Cooling |
Air cooled |
|
|
Working temp |
5~35 ℃ |
|
|
Gross weight |
90KG |
|
|
Power supply |
AC220V±10%,50Hz or AC110V±10%,60Hz |
|
| Support format | PLT, PCX, DXF, BMP, JPG, etc., and can directly use TTF fonts; | |
Applications:
The 30W CO2 Laser Marking Machine is ideally suited for various applications across several industries, including but not limited to:
Personalized gifts and products
Product identification and barcodes
Branding and packaging solutions
Signage and displays
Stationery and promotional items
Textile and leather product design
With our 30W CO2 Laser Marking Machine, enhance your products, accommodate the unique needs of your industry, and stay ahead of your competitors. If you have any inquiries, require further information, or would like to schedule a demonstration, please feel free to contact us. Start leveraging the power of our 30W CO2 Laser Marking Machine to lift your products to new heights!
30W CO2 laser marking machine is a gas laser machine, its wavelength is 10.6um, which belongs to the mid-infrared frequency band, Co2 laser has larger power and higher electro-optical conversion efficiency. It filled wth Co2 gas as the working substance. Charge Co2 gas and other auxiliary gases into the RF tube. When a high voltage is applied to the electrodes, a glow discharge is generated in the discharge tube, causing the gas molecules to emit laser light. After amplifying the released laser energy, the laser beam is generated. Automatic marking is realized by changing the optical path of the laser beam through the computer-controlled galvanometer.

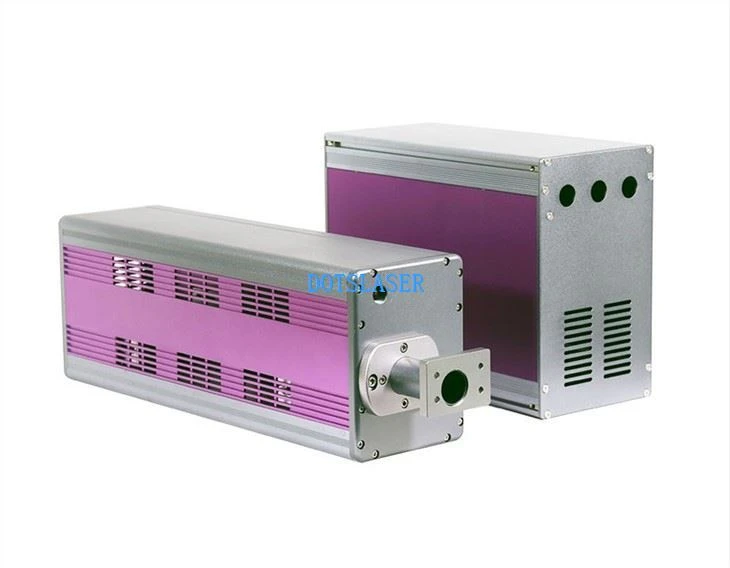

The core components of this model are all imported, such as Co2 RF tubes, high-speed scanning galvanometers, etc. Guaranteed high marking accuracy and speed,It is very stable and can work continuously for a long time. It is also can be assembled with China RF tubes and high-speed scanning head, they`re also as stable
as imported components, but it is more economic.
The principle of 30W CO2 laser marking machine.
Using infrared light band, 10.64μm gas laser source, the carbon dioxide gas is charged into the high-voltage discharge tube to generate glow discharge, so that the gas molecules release laser beam, after the laser energy is amplified, the laser beam for material processing is formed. The surface of the processed body is vaporized to achieve the purpose of marking.
product key technologies
Why choose 30W CO2 laser marking machine from DOTSLASER?
Marking line is quite fine, minimum can be 0.15mm:

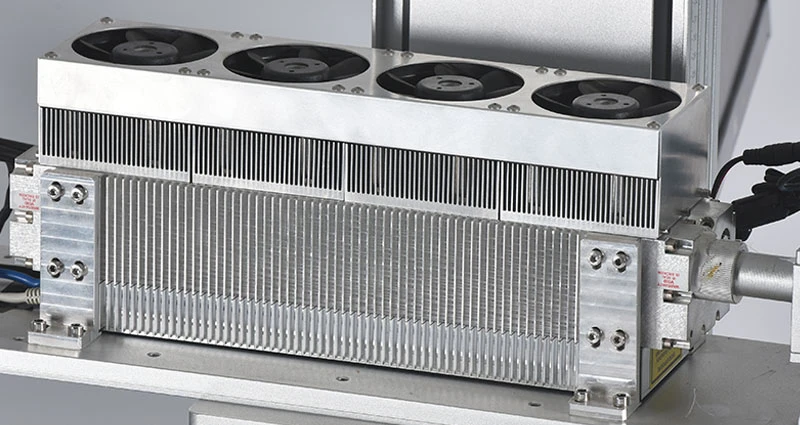

Assembled with imported RF tube or China top brand RF tube, it is stable and reliable,high repeatability and positioning
accuracy,continuous praise from customers.
Long life time:
The life of many factories' laser tube are only 4,000 hours around, but the lifetime of DOTSLASER`s can be 40,000 hours,even more.It can run at full capacity 24 hours a day.It can well meet the needs of enterprises for mass production and processing.
Applicable field of 30W CO2 laser marking machine
Wide range of application fields: the maximum marking speed of 7000mm/s improves processing efficiency; It can be easily integrated on the production line or work independently; suitable for marking, engraving and cutting on most non-metallic materials;
Flexible and convenient operating system: The operation process is user-friendly, and the equipment is stable; the special control software is compatible with AutoCAD, CorelDRAW, Photoshop and other software output; it can realize the automatic arrangement of text symbols, graphic images, barcodes, QR codes, and automatic serial number increments.
Outstanding product cost performance: imported RF lasers are used, with good beam performance, long service life, stable performance and maintenance-free;
Convenient service Fast, worry-free use; simple and user-friendly design, saving high training costs; comprehensive equipment performance is stable, with 24-hour continuous work ability;
Applicable industries of 30W CO2 laser marking machine
It can mark a variety of non-metallic materials and some metal products, such as bamboo products, wood, acrylic, leather, glass, architectural ceramics, rubber and so on. Widely used in pharmaceutical packaging, food packaging, beverage packaging, plastics, textiles, leather, wood, handicrafts, electronic components, communications, watches, glasses, printing and other industries.
It is suitable for marking, engraving, hollowing and cutting of various non-metallic materials and products. It can mark, engrave, hollow out, and cut various characters, symbols, graphics, images, barcodes, serial numbers, etc.
Equipment comparison - details determine quality
-

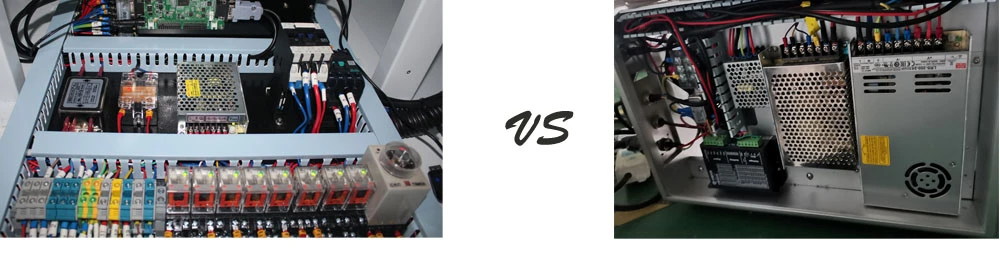

Wire connection
DOTSLASER: The internal layout is reasonable Competitors: The internal layout
the wiring is neat and orderly, and the connectors have sleeve wiring is messy,no sleeve to show how to connect it.
1. Quality assurance and after-sales service
The warranty period of the equipment shall be 12 months since the equipment be used by the customers, the installation and debugging is completed and the equipment is accepted by the demander. Dotslaser attaches great importance to the after-sales service work of the product, once the product is delivered to the user, the company immediately established the user after-sales service file, and regularly track the user's product use status, solve and answer all the problems of the user, received the user's notification information about the equipment failure, the company's workers can make a rapid response within 2 hours. If the telephone guidance is difficult to troubleshoot, our company's technical staff can arrive at the customer site within 24 hours to provide support.
2. Installation and debugging
Before machine installation, our factory will offer you a basic structure installation file,the good need 2 weeks delivery to you there , the engineers of Dotslaser will arrive at your site and inspect the machine again. Comfirm all the conditions meet the installation and commissioning requirements of the equipment, the equipment will transport in time. The installation and commissioning time of the equipment is about five working days, the first three days are connected to the use of the system, and the system is operational after the service project. The engineer will train qualified operators on basic maintenance procedures and general operating characteristics of the equipment in the next two days
3. Service support
If there has any problem with any part of the system during the warranty period, Dotslaser well-trained service engineers are ready to provide cellphone call or begin on-site service,if the machine has any problem during the warranty period,please contact us directly !
