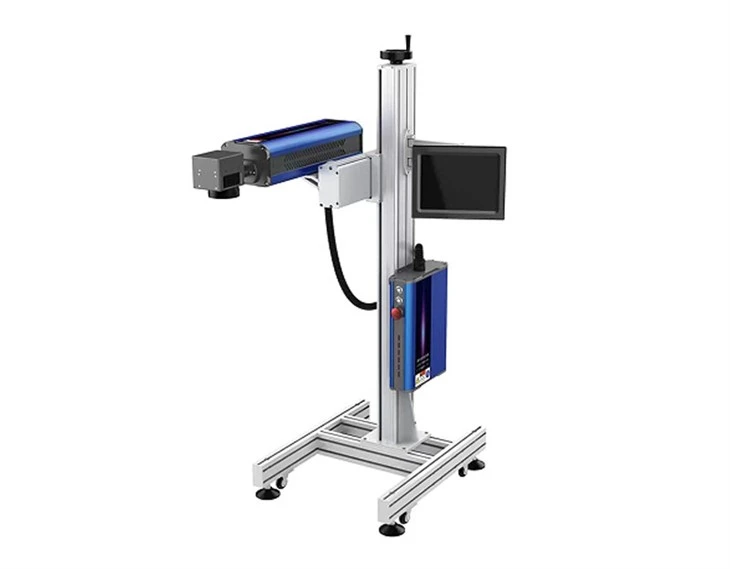

CO2 Flying Laser Mark Cloths
CO2 flying laser mark cloths
Products Description

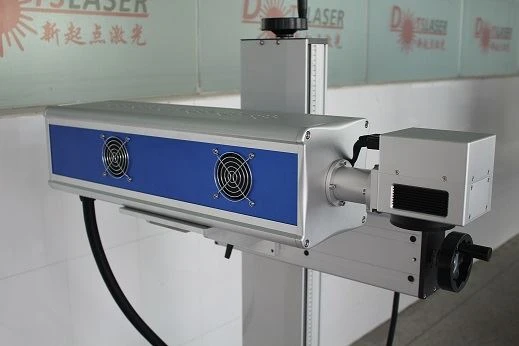

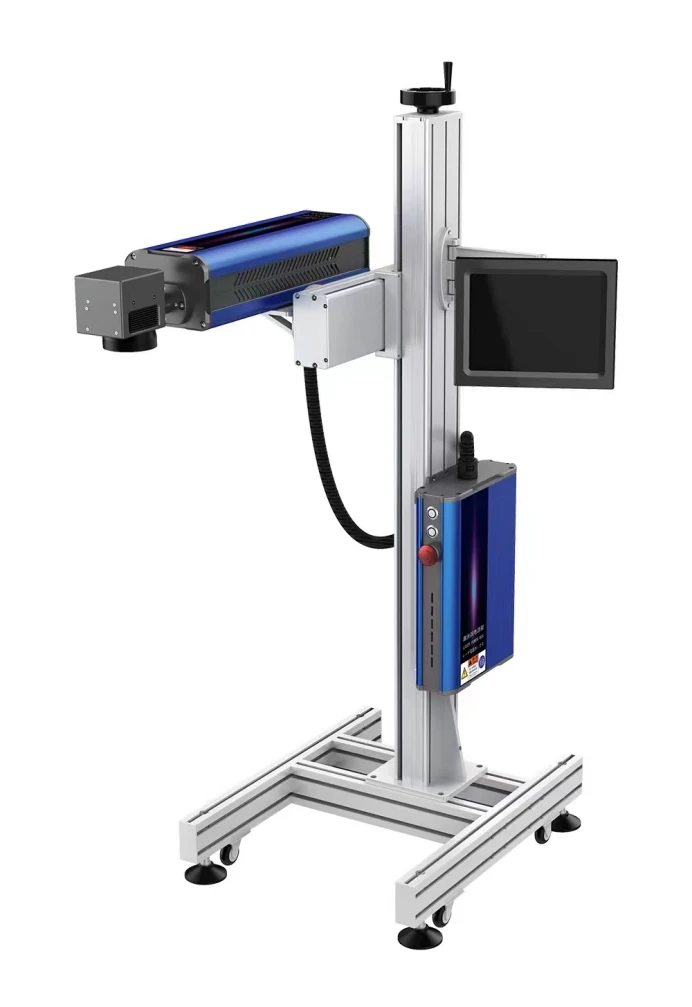

DS-LMC30 laser machine is Dotslaser especially design for engraving non metallic materials, it has compact size, equipped with for roller casters, convenient to move, adopted good quality laser source,ensure stable laser beam, it performs good marking result. Support long coding function, coding content covers numbers, special characters, letters, Chinese and other characters and LOGO.
CO2 Flying machine features
High marking accuracy
CO2 flying laser machine is equipped with high-performance high-speed galvanometer scanning system, so the marking
accuracy is high and the processing speed is fast.
Wide applications
CO2 laser machine mostly use in non-metallic materials,such as wood, paper,bamboo,stone,rubber, cloth,arcylic,plastic,ceramic,etc.
Permanent marking
CO2 laser marking machine with high photoelectric conversion efficiency, stable laser beam, smaller beam spot size,its marking result won't change even in a hash environment.
Higher productivity
Parameter
|
Model |
DS-LMC30 |
|
Laser power output |
>30W |
|
Laser wavelength |
9.3μm/10.6μm |
|
Marking area |
100x100mm(standard) |
|
Pulse frequency |
1~100KHZ |
|
Max marking speed |
12,000mm/s |
|
Font format |
Dot,single line,True type |
|
Code format
|
Most 1D&2D codes available |
|
Supported interface |
USB,TCP/IP,RS219 for encoder and sensor |
|
Repeat accuracy |
±0.001mm |
|
Min.line width |
0.1mm |
|
Min.character size |
0.2mm |
|
Cooling |
Air cooled |
|
Working temp |
5~35℃ |
|
Power supply |
AC220V±10%, 50HzorAC110V±10%,60Hz |
|
Gross weight |
90KG |
FlyMarking on surface of various non-metallic materials and products, such as plexiglass, ceramics, plastics, synthetic materials, wood, rubber leather,stone, bamboo, paper products;
Electronic industry: laser flymarking of capacitors ,inductors, printed circuit boards, integrated circuits, electrical plug-in cards, various instruments and control panels;
Daily necessities and clothing industry: marking buttons, cosmetic packaging, food packaging, tobacco and alcohol, stationery, handicrafts, etc.
Superiority of Dotslaser's machine:

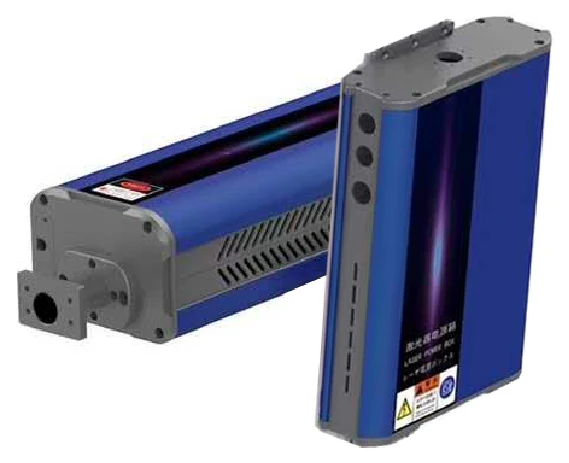

Laser source:
A professional control board and software can give a good order to machine to process good work. DOTSLASER adopts famous laser source,fit for our machine perfectly. Many competitors use controller which is copied or pirated by unprofessional programmer. So it leads to issues such as lots of bugs, failure,disconnection, no update,copyright. DOTSLASER adopt world wide leading laser source, it is very stable and with good laser beam output, high pulse energy, suit for long time laser processing on harden stones; Many competitors assembly unknown laser source, which is unstable and has a high failure rate, not good for long time engraving hard stones
We designed and developed leading SUPER galvo, compared with traditional ordinary laser engraving machine, its spot size is far more fine, so it can engrave on wide area at the same laser power. or has 30%~50% more fine lines at same working area. so engrave smaller text is feasible.
Double red light metal galvanometer:
Metal body structure, built-in dual red light marking instructions, with the advantages of adjustment-free, maintenance-free, and high stability, it can be upgraded with high-speed digital scanning galvanometer.

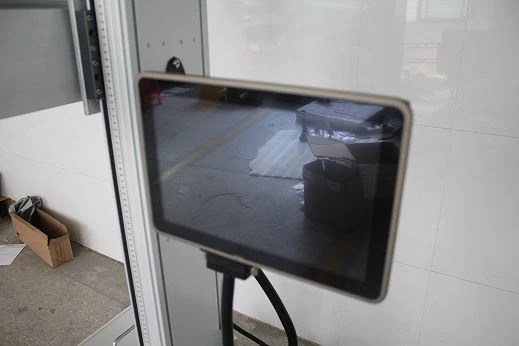

Powerful marking software:
The control system is powerful, it can optimize a variety of data according to different processes and support multi-language one-key switching, it meets the application process requirements of most industries in the market .

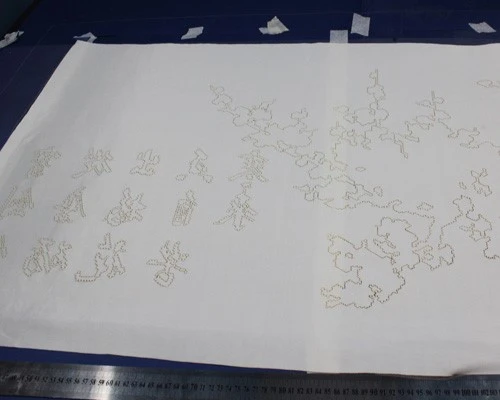

Samples Of CO2 Laser Marking
Shipping and package
Unpacking Caution
Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.
● Whether there is damage or deformation during transport.
● Confirm that all of the items on the packing list are correct.
● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).
● Make sure that all clamps are tight and that there are no foreign objects in the device.
● Confirm the operation buttons, switches are normal.
After-sales service
The service tenet of DOTSLASER is: "satisfy users and help users succeed". We not only write it into the company's articles of association and print it on the company's promotional color pages, but also strive to implement it into our consciousness and action. We use customer relationship management software to make detailed records of our door-to-door personnel, user contact personnel, fault occurrences, and resolution processes for every door-to-door service.
Technical service commitment:
Technical support: After you purchase the machine, we will provide you with free technical personnel training and 24-hour technical consultation. Pre-sale service: According to customer's requirements, our company can provide various laser sample marking tests.
In-sale service:
Customers can come to learn for free, and we can train 1-2 equipment users and maintenance personnel for customers. If our technicians are required to provide door-to-door service, the customer only needs to bear the cost of round-trip air tickets, room and board.
After-sales service:
After the customer purchases the machine, the customer will be provided with a one-year warranty and a lifetime maintenance service. Service time: We will arrange technicians to guide maintenance immediately after receiving your fault feedback. Our company regularly visits users, records and processes user feedback in a timely manner, improves our service quality and technical level at any time, and provides users with more comprehensive and thoughtful products and services.
