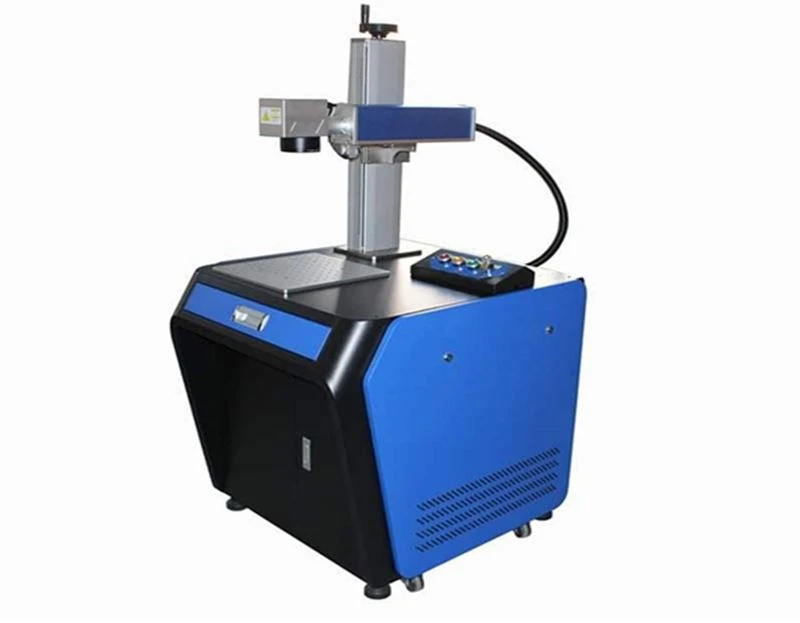

100w Fiber Laser
100w Fiber Laser
Products Description
100w Fiber LaserIt can mark the surface of metal and most non-metal materials. Our products have reached a high level in appearance, performance and precision, running smoothly and being durable. It is equipped with a simple operation interface, easy to understand and easy to use, and it is very simple to operate. In addition, it has the advantages of no consumables, low depreciation cost, trouble-free long-term operation, and maintenance-free. 100w Fiber Laser is widely used.
Parameters
|
Model |
DS-LM100 |
|
Laser power |
100W |
|
Pulse Repetition Frequency |
1-200kHz |
|
Beam quality(㎡ |
<1.6 |
|
Depth of engraving(depend on material) |
<5mmc |
|
Power consumption |
≤1500W |
|
Operating voltage |
Single phase AC 220V/110V 50/60HZ 5A |
|
Laser wavelength |
1064nm |
|
Working area |
100×100mm,150×150mm |
|
Repetition precision |
±0.003mm |
|
Max engraving speed |
≤8000mm/s |
|
Minimum line width |
0.01mm |
|
Marking method |
Stationary Marking , disc rotary, Rotary Marking |
|
Character size |
0.5-110mm |
|
Cooling System |
Air Cooling |
|
Direction of Installing equipment |
Any |
|
Cable of Length |
3m (5m optional) |
|
Working Temperature Range |
5-38℃ |
|
Working Humidity |
20%-80% |
|
Net Weight of machine |
166kg |
|
Dimension of Main Body(L×W×H) |
1100mm×85mm×175mm |
100w Fiber Laser has a wide range of uses, widely used in metal processing, metal processing, mold processing, jewelry processing, etc.
It can process metals and alloys such as stainless steel, copper, iron, aluminum, carbon steel, laser marking of EP materials (such as electronic component packaging, terminal posts, PCB circuit boards, IC, etc.) or plastics such as ABS (such as pipes, electrical enclosures, etc.) , Electronic products and other products marked with serial numbers, LOGO, etc.)
advantages
1. High Precision: The Jewelry Mini Laser Engraver utilizes advanced laser technology to carve intricate designs, images, text, or barcodes with exceptional accuracy. Fine-detail work is made easy, allowing artists to produce sophisticated engravings without compromising the integrity of their original design
2. Compact Design: With its small footprint and compact size, this engraver is ideal for workshops or studios with limited space. It is easily transportable, ensuring maximum convenience and flexibility for the user.
3. Versatile Material Compatibility: The Jewelry Mini Laser Engraver is compatible with a wide range of materials commonly used in jewelry making, including precious metals like gold, silver, and platinum, as well as various gemstones, crystals, and even glass. This versatility allows you to create unique pieces tailored to your customers' tastes and preferences.
4. User-friendly Interface: The engraver comes with an intuitive software that is easy to learn and operate. It supports multiple file formats, making it simple for you to import your design and bring your ideas to life.

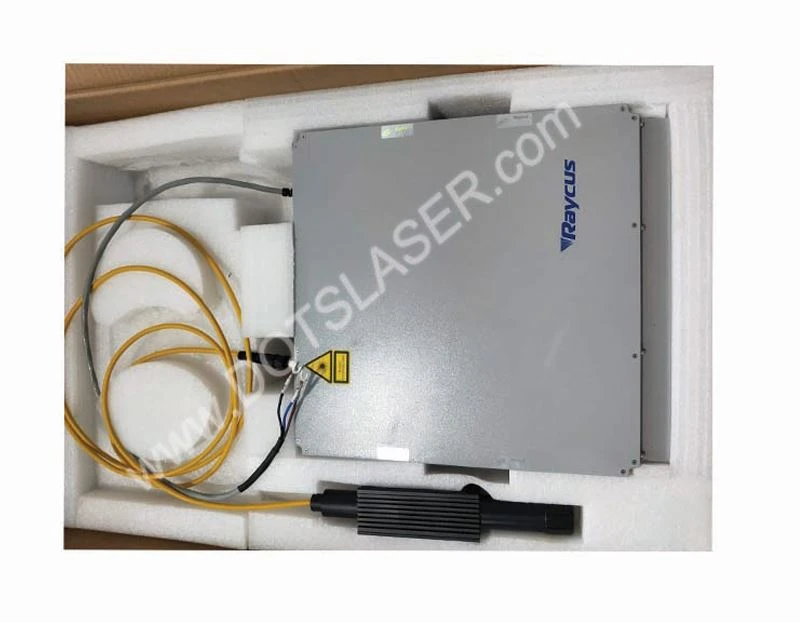

5. Top brand laser generator, very stable and long lifetime, max. 100,000hours.
Tough and stable laser working table ,Using 2mm thickness sheet metal, seamless welding forming .

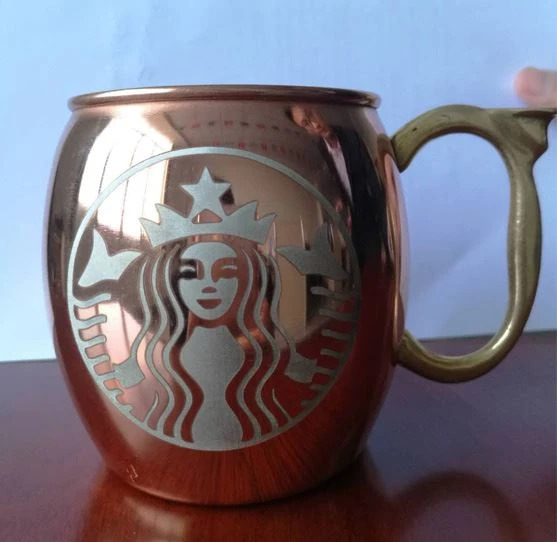

Marking samples of 100W fiber laser
100W fiber laser application area

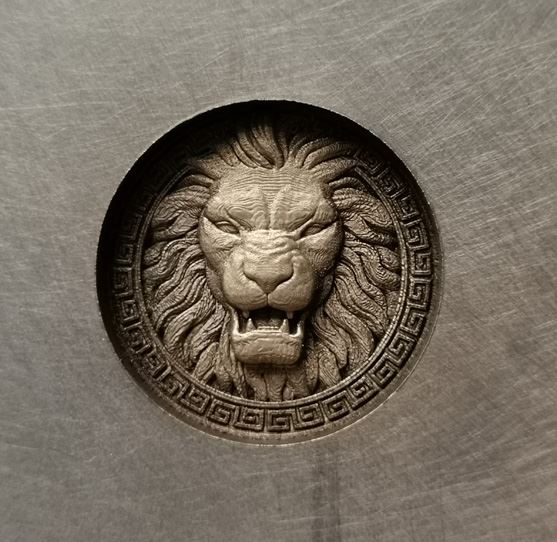

Deep engraving
Compared with 50W or 60W lasers, 100W lasers have stronger energy and faster marking speed, which is more suitable for deep engraving.
