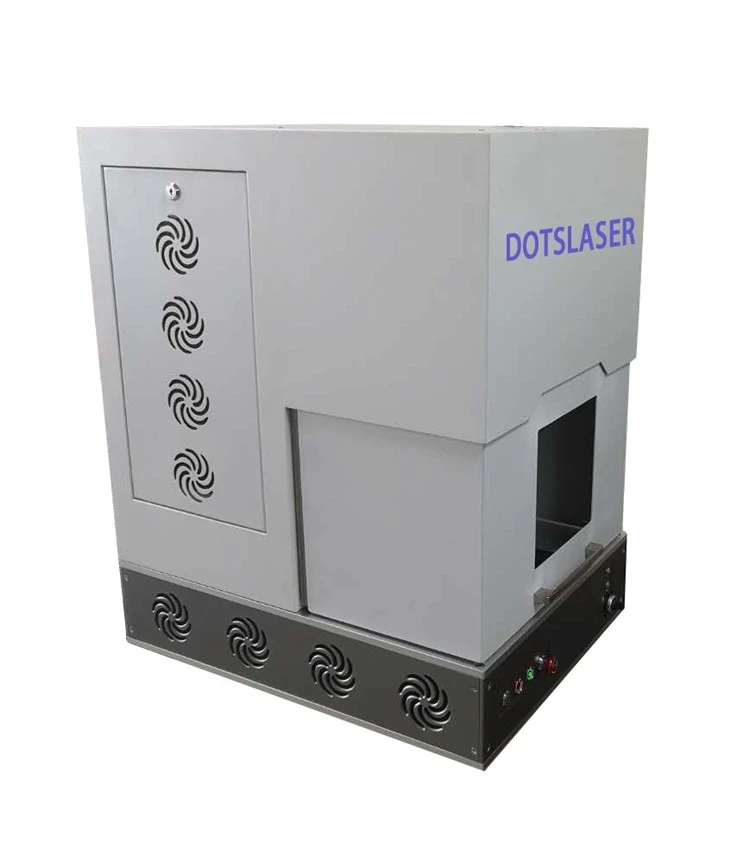

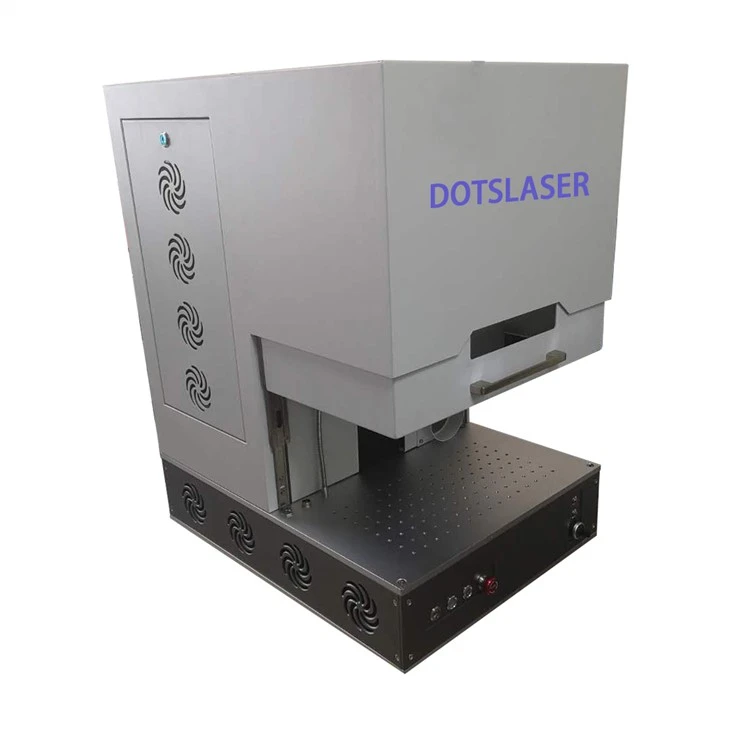

Laser Engraver For Stainless Steel
Laser Engraver For Stainless Steel
Products Description
The fiber laser directly introduces the 1064nm high-power laser into the processing surface through a soft single-mode fiber with a sheath, and the spot size after collimation and focusing reaches tens of microns or less. This kind of laser is close to the diffraction limit. It can be used for marking, drilling or processing various materials.
Product Features
1. Laser Engraver For Stainless Steel, this type of equipment has high photoelectric conversion efficiency, good beam quality, and high laser power. It is especially suitable for deep marking and high-precision cutting of stainless steel and other metals. It can also be equipped with a rotating device for precision processing of ring materials.
2. The Laser Engraver for Stainless Steel is known for its precision and accuracy. It offers quick and efficient engraving capabilities on stainless steel surfaces with minimal errors or imperfections.
3. The machine is also highly versatile, allowing for customization of designs and engravings according to specific requirements. It helps businesses create high-quality and professional-looking products that meet the demands of the market.
Parameters
|
Model |
DS-LM20/DS-LM30/DS-LM50 |
|
Laser power |
20W/30W/50W |
|
Pulse Repetition Frequency |
1-200kHz |
|
Beam quality(㎡ |
<1.2 |
|
Depth of engraving(depend on material) |
<5mm |
|
Power consumption |
≤800W |
|
Operating voltage |
Single phase AC 220V/110V 50/60HZ 5A |
|
Laser wavelength |
1064nm |
|
Working area |
100×100mm,150×150mm |
|
Repetition precision |
±0.003mm |
|
Max engraving speed |
≤8000mm/s |
|
Minimum line width |
0.01mm |
|
Marking method |
Stationary Marking , Rotary Marking |
|
Character size |
0.5-110mm |
|
Cooling System |
Air Cooling |
|
Direction of Installing equipment |
Any |
|
Cable of Length |
3m (5m optional) |
|
Working Temperature Range |
5-38℃ |
|
Working Humidity |
20%-80% |
|
Net Weight of machine |
56kg |
|
Dimension of Main Body(L×W×H) |
480mm×215mm×450mm |
Instruction of choosing machine:
Power: The laser power has 20W, 30W, 50W, 60W, 80W, 100W, 120W, the greater the power, the higher the efficiency.
Working area: 70x70mm, 110x110mm, 150x150mm, 175x175mm, 200x200mm, 250x250mm, 300x300mm
Right lens: The lens controls the working area. You can choose different lenses. If you want to use a wide working area, please choose a high-power laser source.
You can choose according to your working space, we have portable type, split type, closed type, desktop type, etc.
Why choose our Laser Engraver For Stainless Steel machine ?
*We are a professional laser manufacturer with more than 12 years of laser production research and development experience. The machines are exported to Europe, America, Japan, Korea .
*We have a professional service team, and we have dedicated personnel for after-sales service at different times .
*Our company cooperates with cabinet manufacturers of large domestic companies. We give them design ideas. They produce finished cabinets for us. Quality first is our principle.
|
What is laser engraver for stainless steel? As far as we all know the laser is invisible and intangible, but it has a fixed wavelength. For example, the wavelength of fiber laser is 1064nm. This wavelength can make it react on specific materials, especially on metals. Stainless steel materials can be very good response, carving out the pattern or shape we need. This machine is composed of several major components. The first major part of the laser is also called the laser generator, the second major part is called the scanning head, which can control the direction of the laser, and the third major part is called the control card, which can be very good. The fourth major component is the power supply, which supplies power to the first three components. As we all know, electronic components need power to work. The same is true for lasers. It needs electricity to work as welll . |
|
You should be pay attention to: (1) The lens must be cleaned everyday: bend the lens paper into a few folds and wet it with a few drops of analytical pure acetone; Gently wipe the lens surface with wet lens paper, be careful not to press the lens with your fingers; Repeat several times until the lens surface is clean, no dirt and residual traces left on the mirror; Blow dry with dry air; If necessary, roll the lens paper wet with a few drops of acetone into a rod and gently scrub the lens surface to remove heavy stains. (2) The reflector lens should also be cleaned to remove dirt on schedule: remove the lens from the frame; Mirror facing up, put the lens paper on the mirror; Put a few drops of acetone on the lens paper and gently pull the lens paper over the mirror; Repeat the above process until the mirror is clean, no dirt and residual stains left on the mirror; Then fit the lens into the lens base. |

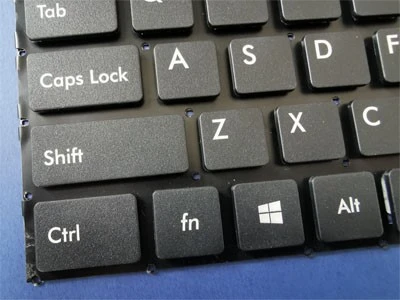

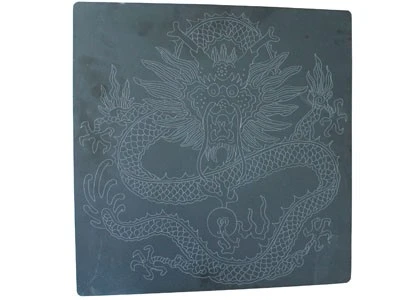

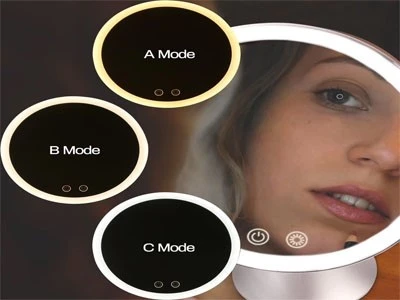

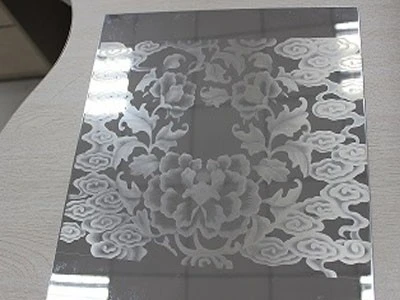

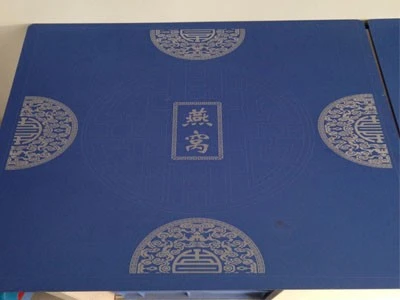

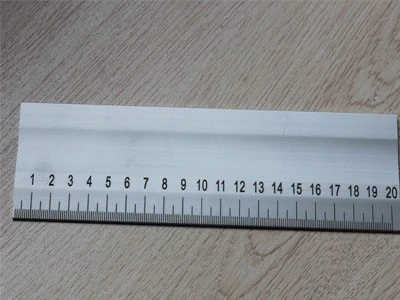

Samples
FAQ
Q1:How to choose suitable laser machines ?
Q2:Why we choose your laser machines ?
Q3:How shoud we do the payment ?
