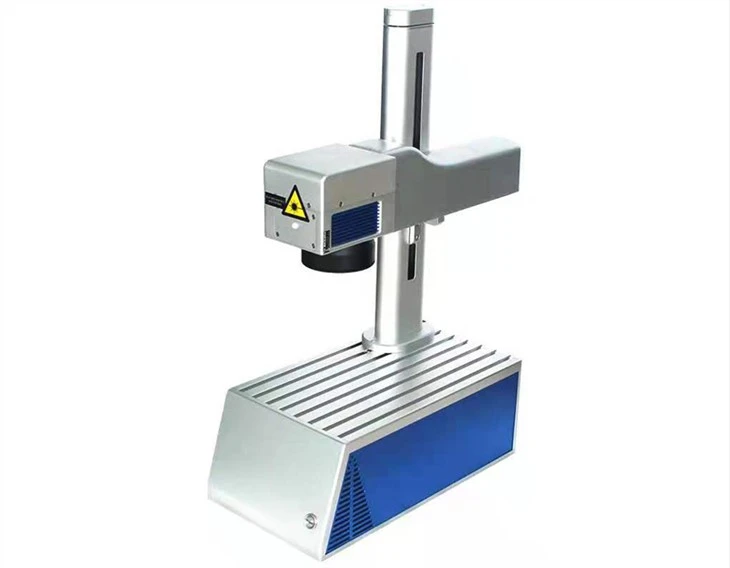

Small Laser Printing Machine
Products Description
Small Laser Printing Machine is a product optimized through our manufacturing and has the characteristics of excellent quality and stable performance. Our product is compact in structure, light in weight, small in footprint, and very convenient for storage and handling. It can be used in many different fields, such as small shops, personal places, small businesses, and it can also engrave various metals and some plastics (ABS).
Products Advantages
|
Laser Printing Machine uses a laser to evaporate the surface material to expose the deep material to engrave exquisite patterns, trademarks and text. |
||||
|
Reduces labor costs greatly , improves production efficiency, ensures the quality of production and processing |
||||
| Improves the appearance and brand effect of the product. It is time-saving and efficient. | ||||
| The light path part adopts a hybrid light path, which has a high light energy utilization rate | ||||
| Control system adopts a unique intelligent prediction algorithm and an improved control algorithm to ensure high-speed processing, stable and efficient operation speed. |
comparison of product parameters
| Model | DS-LM20/DS-LM30 | ||
| Laser power | 20W/30W | Pulse Repetition Frequency | 1-1000kHz |
| Beam quality(㎡ | <1.6 | Depth of engraving(depend on material) | <5mm |
| Power consumption | ≤800W | Operating voltage | Single phase AC 220V/110V 50/60HZ 5A |
| Laser wavelength | 1064nm | Working area | 100×100mm |
| Repetition precision | ±0.003mm | Max engraving speed | ≤8000mm/s |
| Minimum line width | 0.01mm | Marking method | Stationary Marking , disc rotary, Rotary Marking |
| Character size | 0.5-110mm | Cooling System | Air Cooling |
| Direction of Installing equipment | Any | Cable of Length | 3m |
| Working Temperature Range | 5-38℃ | Working Humidity | 20%-80% |
| Net Weight of machine | 46kg | Dimension of Main Body(L×W×H) | 550mm×450mm×175mm |
Application
Small Laser Printing Machine can engrave a variety of non-metallic materials.
Clothing accessories, pharmaceutical packaging, wine packaging, architectural ceramics, beverage packaging, fabric cutting, rubber products, shell nameplates, craft gifts, electronic components, leather and other industries,engrave metal and a variety of non-metallic materials.It is more suitable for the processing of some products that require fine and high precision.
Electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, glasses and watches, jewelry, auto parts, plastic buttons, building materials, PVC pipes, medical equipment and other industries
Applicable materials include: ordinary metals and alloys (iron, copper, aluminum, magnesium, zinc and other metals), rare metals and alloys (gold, silver, titanium), metal oxides (all kinds of metal oxides are acceptable), special surfaces Treatment (phosphating, aluminum anodization, electroplating surface), ABS material (electric appliance housing, daily necessities), ink (transparent keys, printed products), epoxy resin (electronic component packaging, insulating layer.

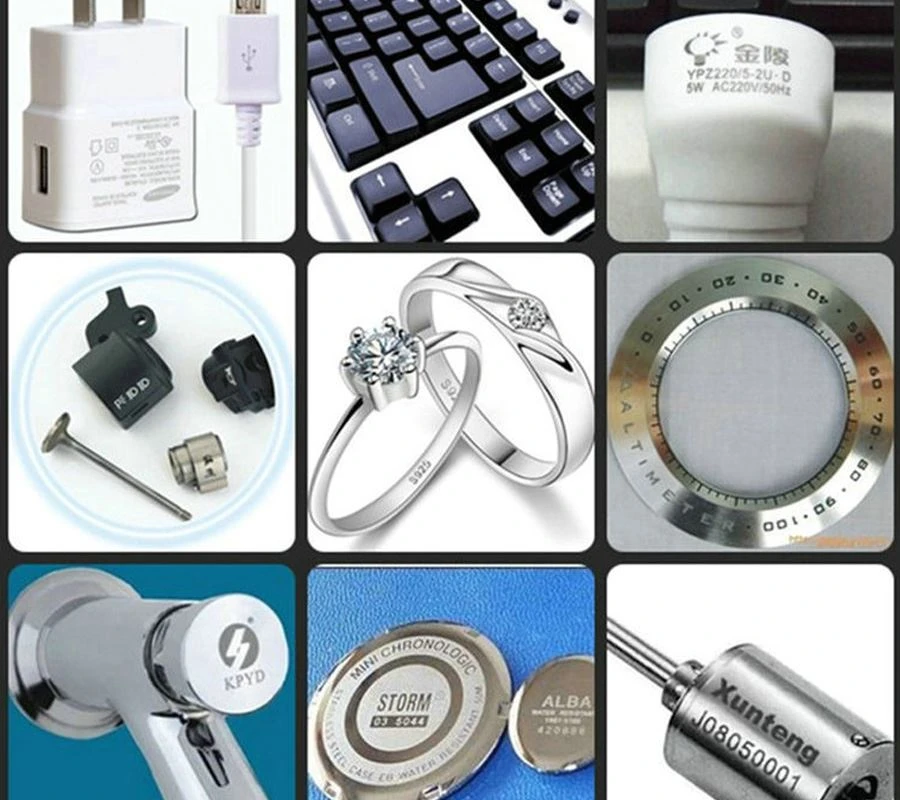

Marking samples
Shipping and package
