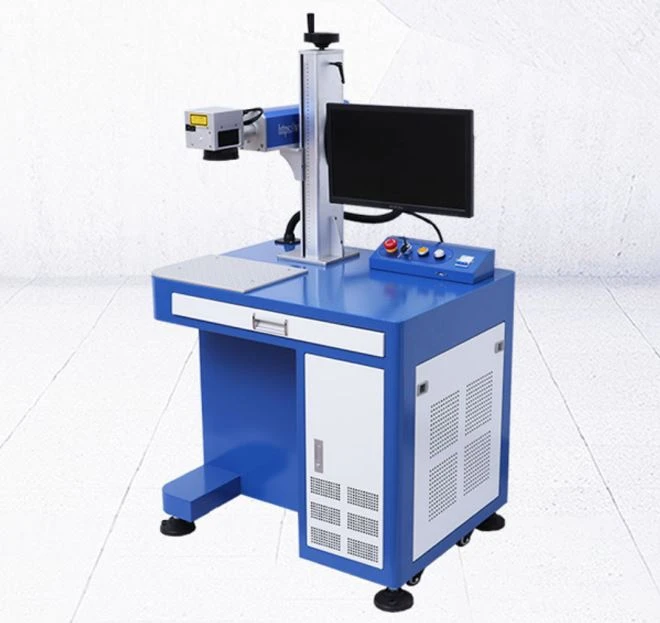

Laser Printing Machine
Laser Printing Machine
Products Description
Laser printing tool is a cutting-edge tool that utilizes the power of laser technology to create long-lasting imprints on a variety of materials. This versatile tool is employed across a wide range of industries including electronics, hardware, consumer goods, automotive, healthcare, and more. Its precision and efficiency make it an invaluable asset for businesses looking to enhance their products with high-quality markings. From intricate designs on jewelry to serial numbers on electronic components, it all achieve good result.
1. A laser printing tool utilizes a precise laser to meticulously etch intricate patterns, logos, and text onto materials by evaporating the top surface. This innovative technology effectively lowers labor expenses, enhances productivity, and significantly elevates the overall aesthetic and brand impact of the end product.
2. It is a time-saving and efficient solution. The hybrid light path used in the design maximizes light energy utilization, creating an effective and streamlined process.
3. The control system implements an innovative intelligent prediction algorithm and advanced control algorithm to guarantee rapid processing, steady operation speed, and high efficiency.
4. The real-time adjustable laser energy provides convenience for customers during operation, making their experience smoother and more efficient.
Configuration
|
Model |
DS-LM20/DS-LM30/DS-LM60/DS-LM80/DS-LM100 |
|
Laser power |
20W/30W/60W/80W/100W |
|
Pulse Repetition Frequency |
1-1000kHz |
|
Beam quality(㎡) |
<1.6 |
|
Depth of engraving(depend on material) |
<5mm |
|
Power consumption |
≤1200W |
|
Operating voltage |
Single phase AC 220V/110V 50/60HZ 5A |
|
Laser wavelength |
1064nm |
|
Working area |
100×100mm,150×150mm,300×300mm |
|
Repetition precision |
±0.003mm |
|
Max working speed |
≤8000mm/s |
|
Minimum line width |
0.01mm |
|
Marking method |
Stationary Marking , disc rotary, Rotary Marking |
|
Character size |
0.5-110mm |
|
Cooling System |
Air Cooling |
|
Cable of Length |
3m (5m optional) |
|
Working Temperature Range |
5-38℃ |
|
Working Humidity |
20%-80% |
|
Net Weight of tool |
166kg |
|
Dimension of Main Body(L×W×H) |
1100mm×85mm×170mm |

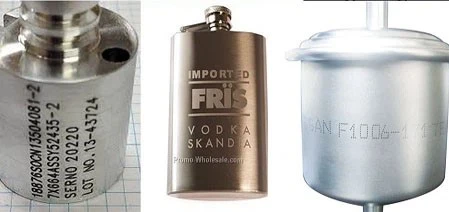

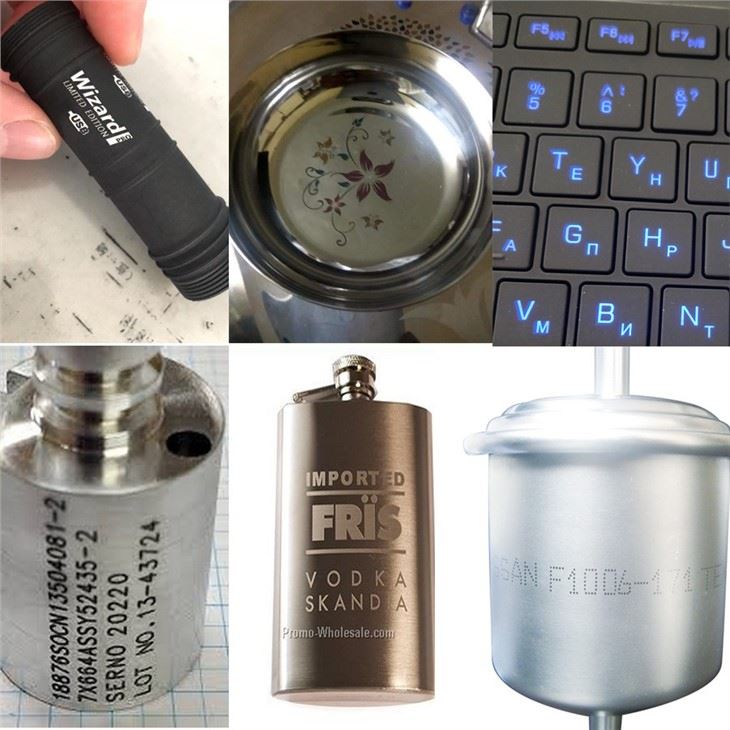

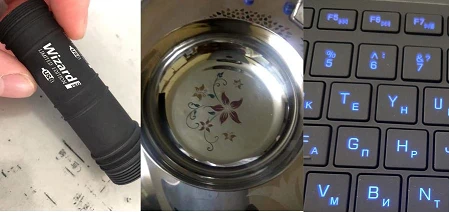

Samples display

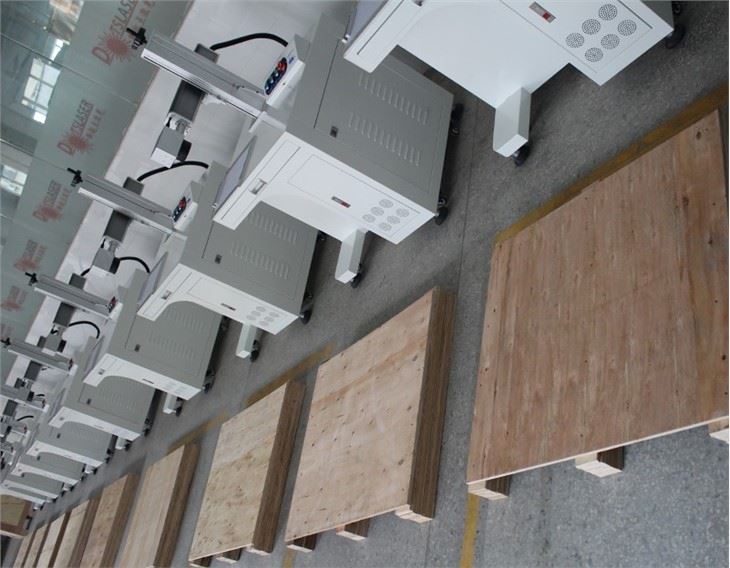

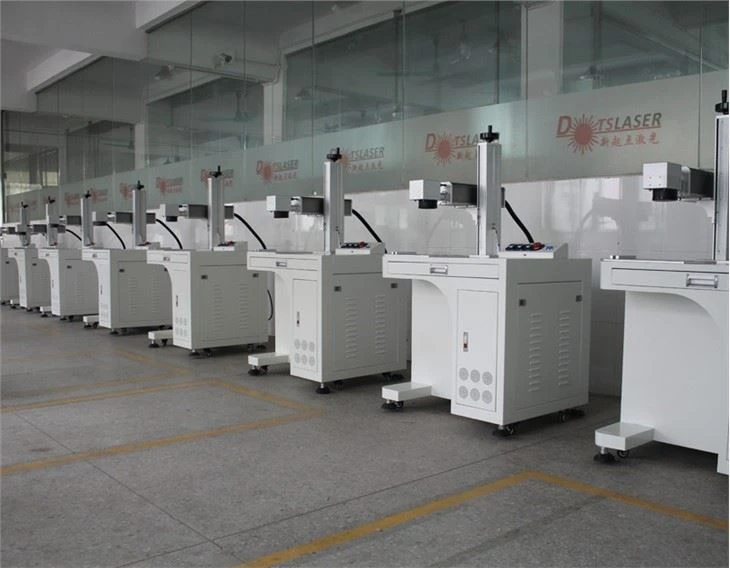

Cargo delivery
1. Quality assurance and after-sales service
The warranty period of the equipment shall be 12 months since the equipment be used by the customers, the installation and debugging is completed and the equipment is accepted by the demander. Dotslaser attaches great importance to the after-sales service work of the product, once the product is delivered to the user, the company immediately established the user after-sales service file, and regularly track the user's product use status, solve and answer all the problems of the user, received the user's notification information about the equipment failure, the company's workers can make a rapid response within 2 hours. If the telephone guidance is difficult to troubleshoot, our company's technical staff can arrive at the customer site within 24 hours to provide support.
2. Installation and debugging
Before tool installation, our factory will offer you a basic structure installation file,the good need 2 weeks delivery to you there , the engineers of Dotslaser will arrive at your site and inspect the tool again. Comfirm all the conditions meet the installation and commissioning requirements of the equipment, the equipment will transport in time. The installation and commissioning time of the equipment is about five working days, the first three days are connected to the use of the system, and the system is operational after the service project. The engineer will train qualified operators on basic maintenance procedures and general operating characteristics of the equipment in the next two days
3. Service support
If there has any problem with any part of the system during the warranty period, Dotslaser well-trained service engineers are ready to provide cellphone call or begin on-site service,if the tool has any problem during the warranty period,please contact us directly !
