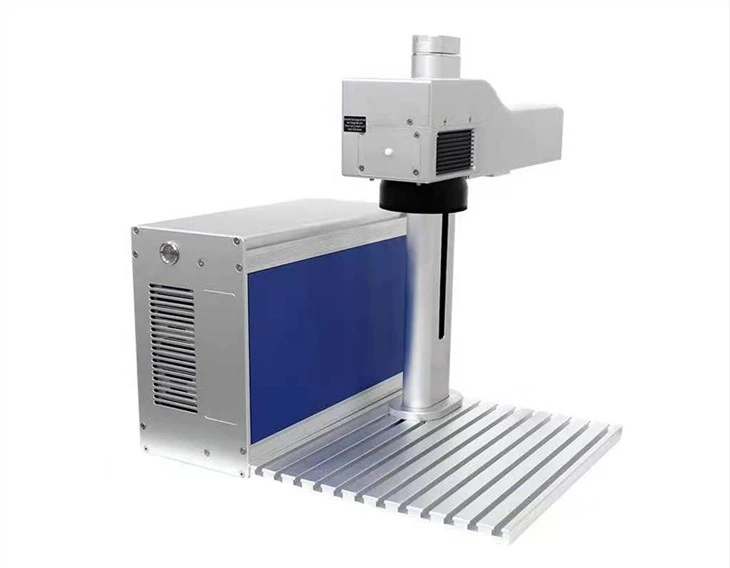

Split Laser Marking Machine
2.Small size and light weight
3.Easy to operate.
4.Professional service supplied.
5.Long life time.

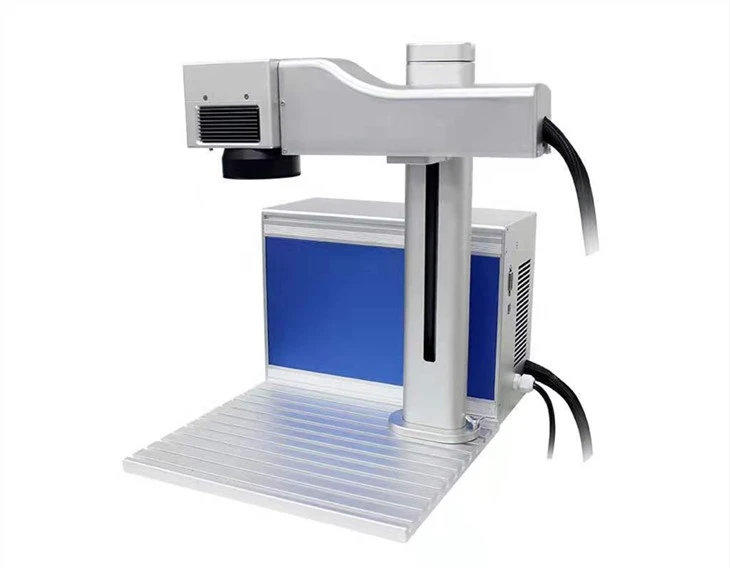

Split Laser Engraver
Products Description
Our company has developed a cutting-edge split engraver that utilizes the latest laser technology. The fiber laser is employed to emit the laser beam, which is then used in conjunction with a high-speed scanning galvanometer system to achieve precise marking. This machine boasts a high optical conversion efficiency of over 30% and features air-cooled cooling for optimal performance. Despite its advanced capabilities, the machine is compact in size, making it ideal for a variety of marking applications.
Product Features
Wide Applications：In particular, for materials with high hardness, high melting point, and brittleness, marking offers significant benefits.
Non-contact: It is a non-contact processing method that ensures product integrity, minimal tool wear, and superior marking quality.
Quality beam: The laser beam is precise, resulting in minimal material consumption and a small heat-affected zone during processing.
High efficiency: Utilizes computer control and enables seamless automation with ease.

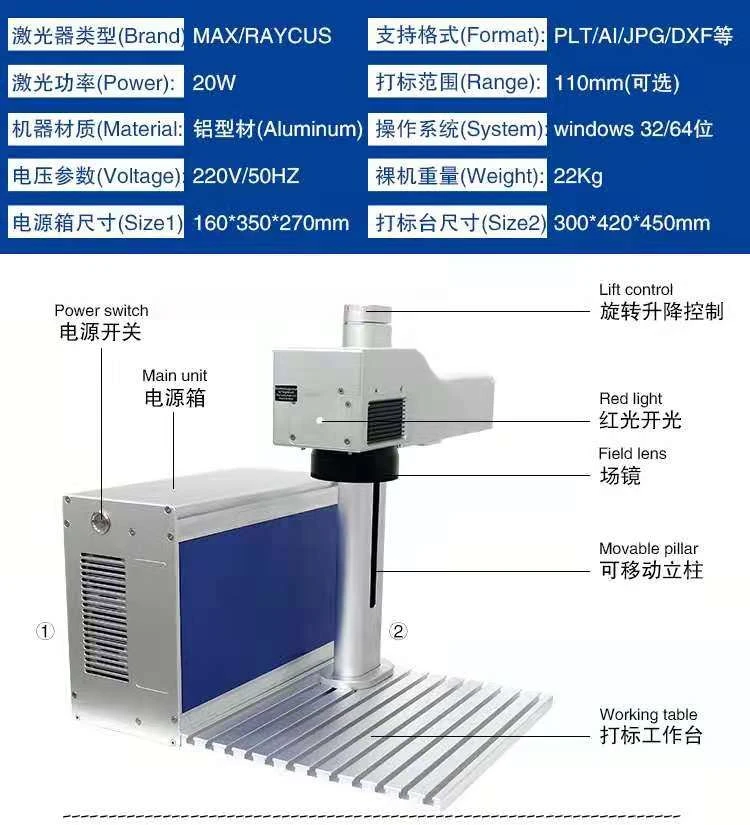

Product detail
Data sheet
| Model | DS-LM20/DS-LM30 |
| Laser wavelength | 1064nm |
| Power output | 20W/30W |
| Laser repetition frequency | 20-80KHz;1~2000KHz |
| Engraving depth | ≤1mm |
| Working area | 110x110mm;160x160mm |
| Max line speed | ≤12000mm/s |
| Minimum font | 0.09mm |
| Maximum line width | 0.006mm |
| Repeat accuracy | ±0.02mm |
| Power consumption | 600Watts |
| Cooling | Air cooling |
| Power supply | AC220V±15% 50/60Hz |
| Format | PLT,AI,JPG,DXF |

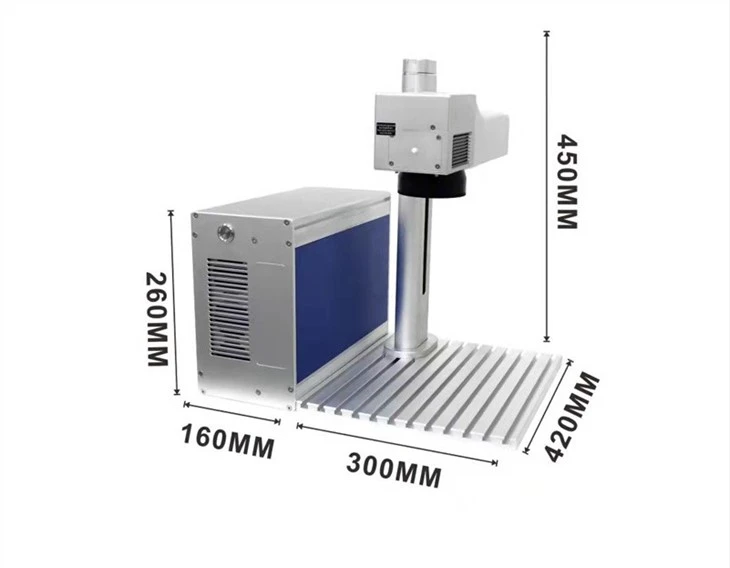

| Marking platform size | 300*420*450mm |
Performance

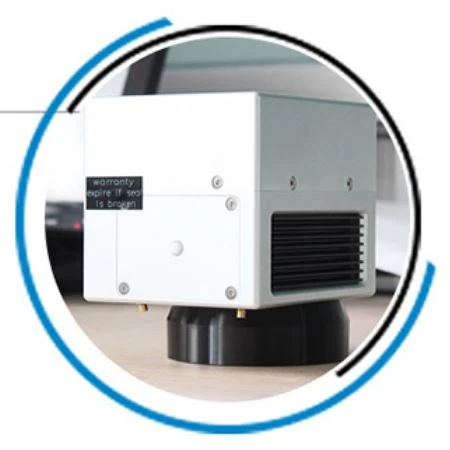

High speed digital galvo head
It adopts advanced servo algorithm and efficient photoelectric sensor positioning technology, and comes with a dual red light focusing system, which can meet most application requirements in terms of performance and positioning accuracy.

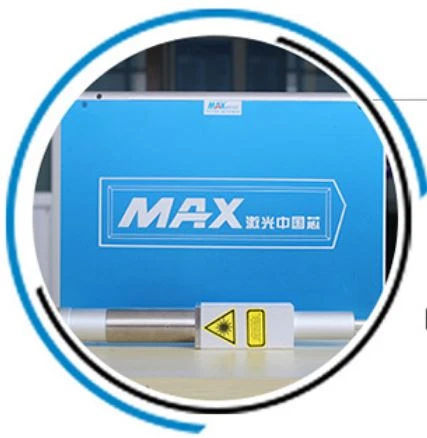

Top performance laser source
The fiber laser source adopts Q-switch or MOPA mode, which automatically adapts to user needs, is maintenance-free as a whole, and can be directly integrated into the user's equipment, with a compact structure.

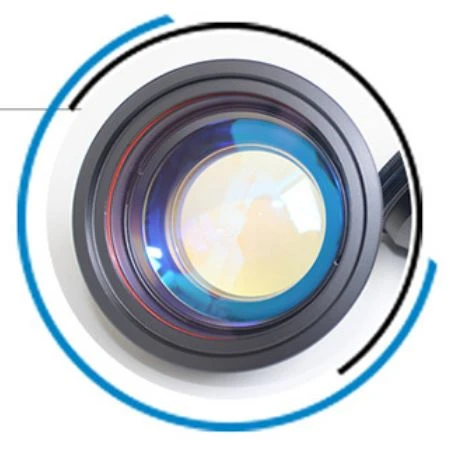

Focal lens
Using the latest high-transmittance laser blue film, the laser transmission rate is as high as 99%, which makes the engraver focus finer, not deformed, and marking more fine and beautiful.

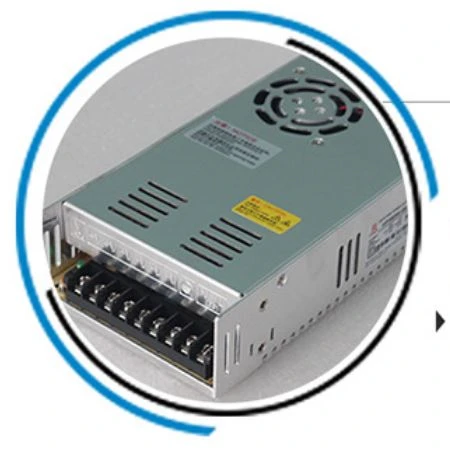

Stable power supply
Leading professional power supply provider, delivering reliable and stable power with minimal failure rates.

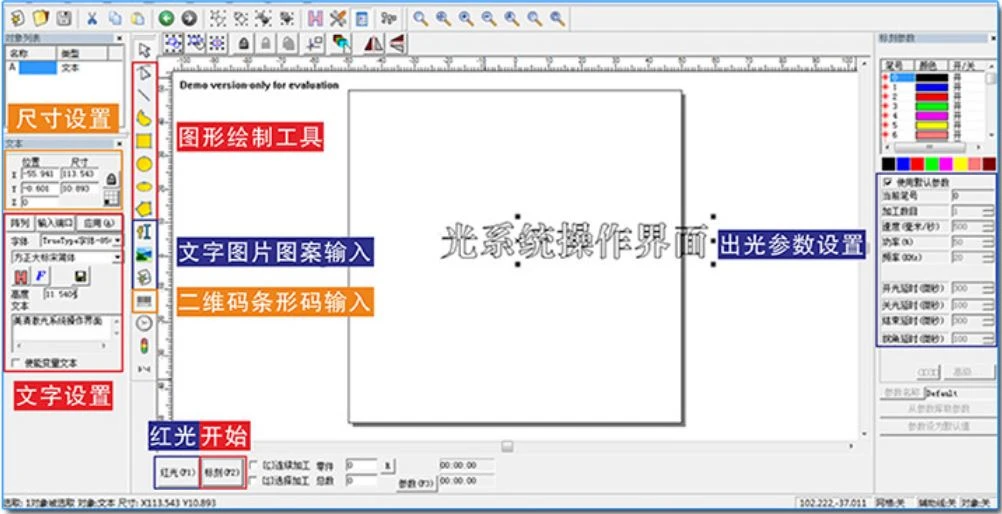

control program
The control system is powerful, easy to operate, and easy to use. It can be understood by just explaining the setting principle, and you can actually operate it after 30 minutes of study.

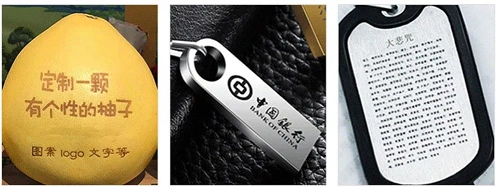

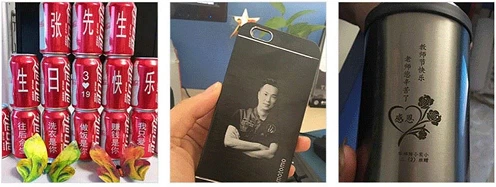

Samples of marking result

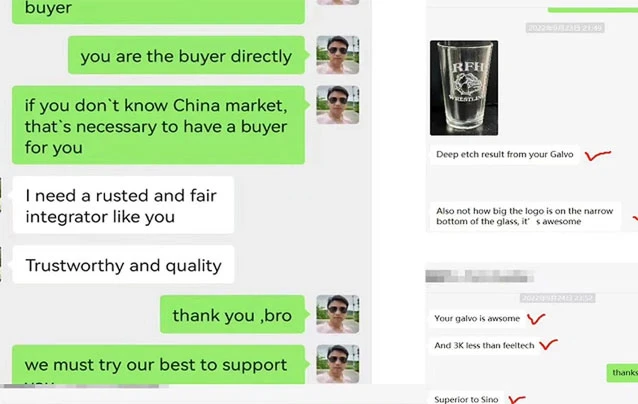

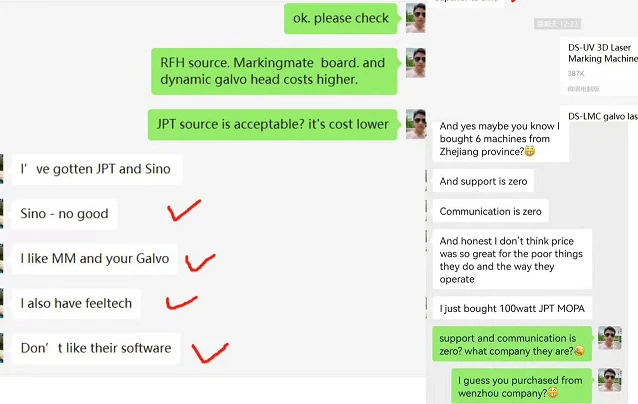

Customer's feedback

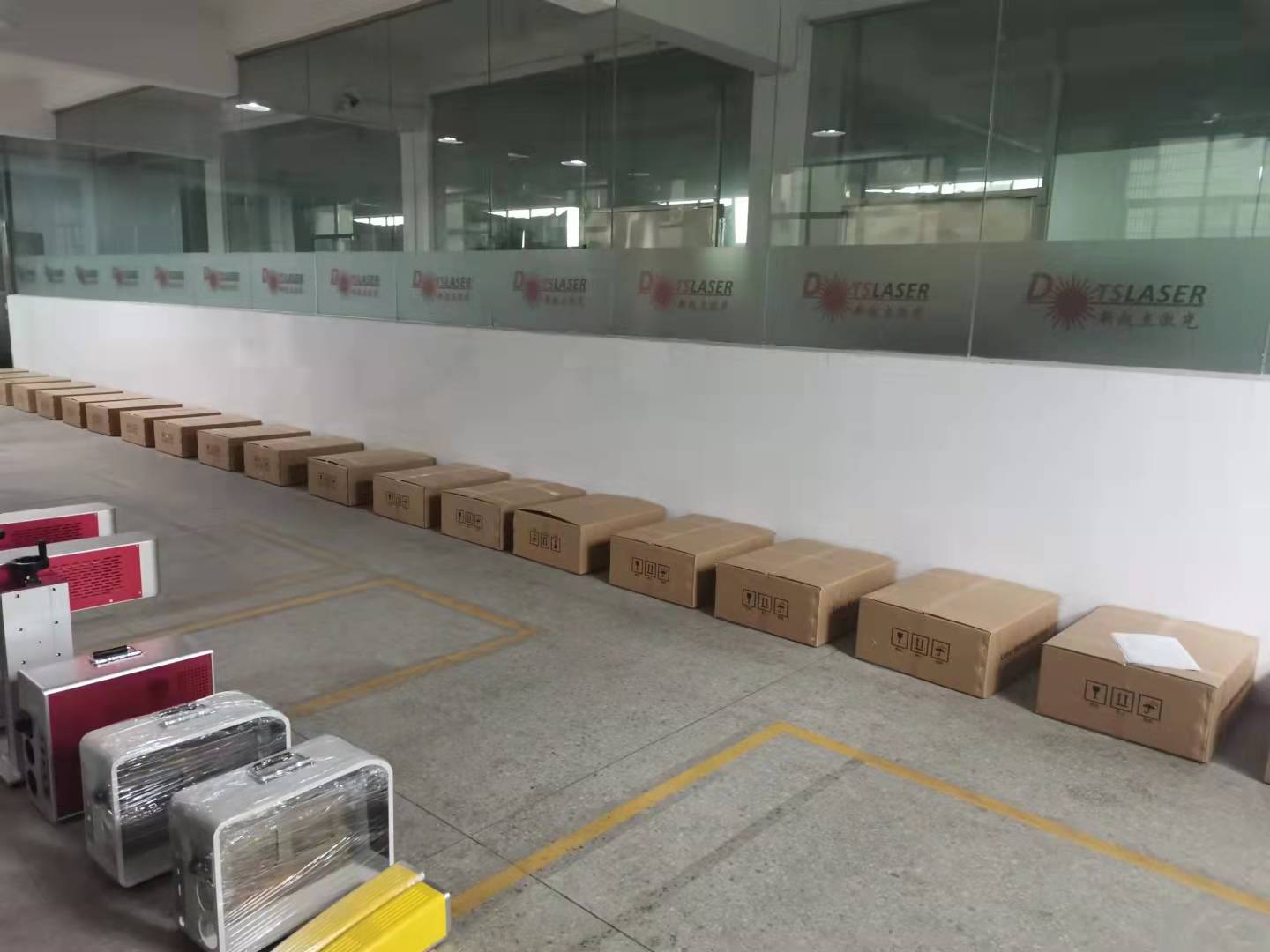

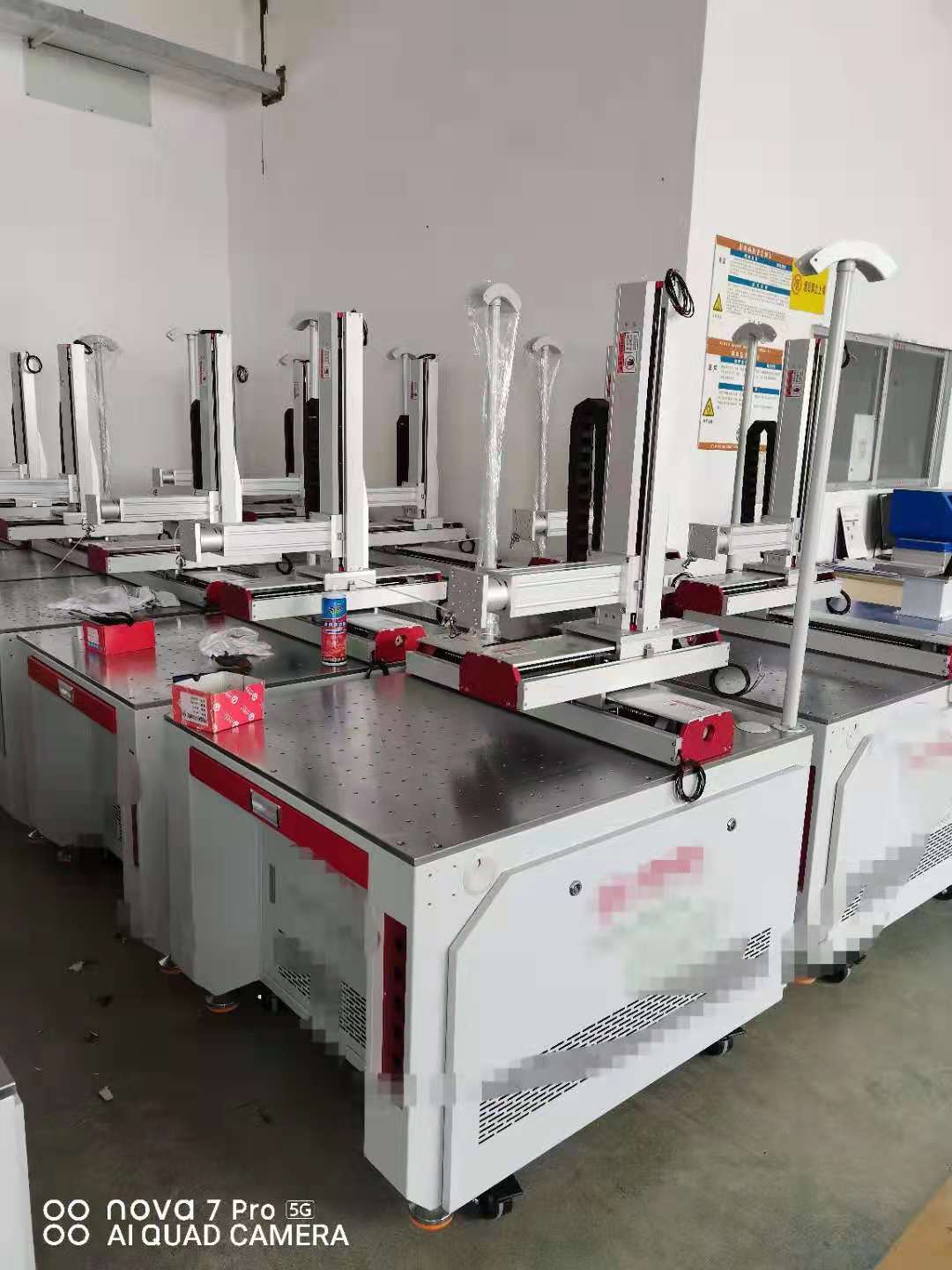

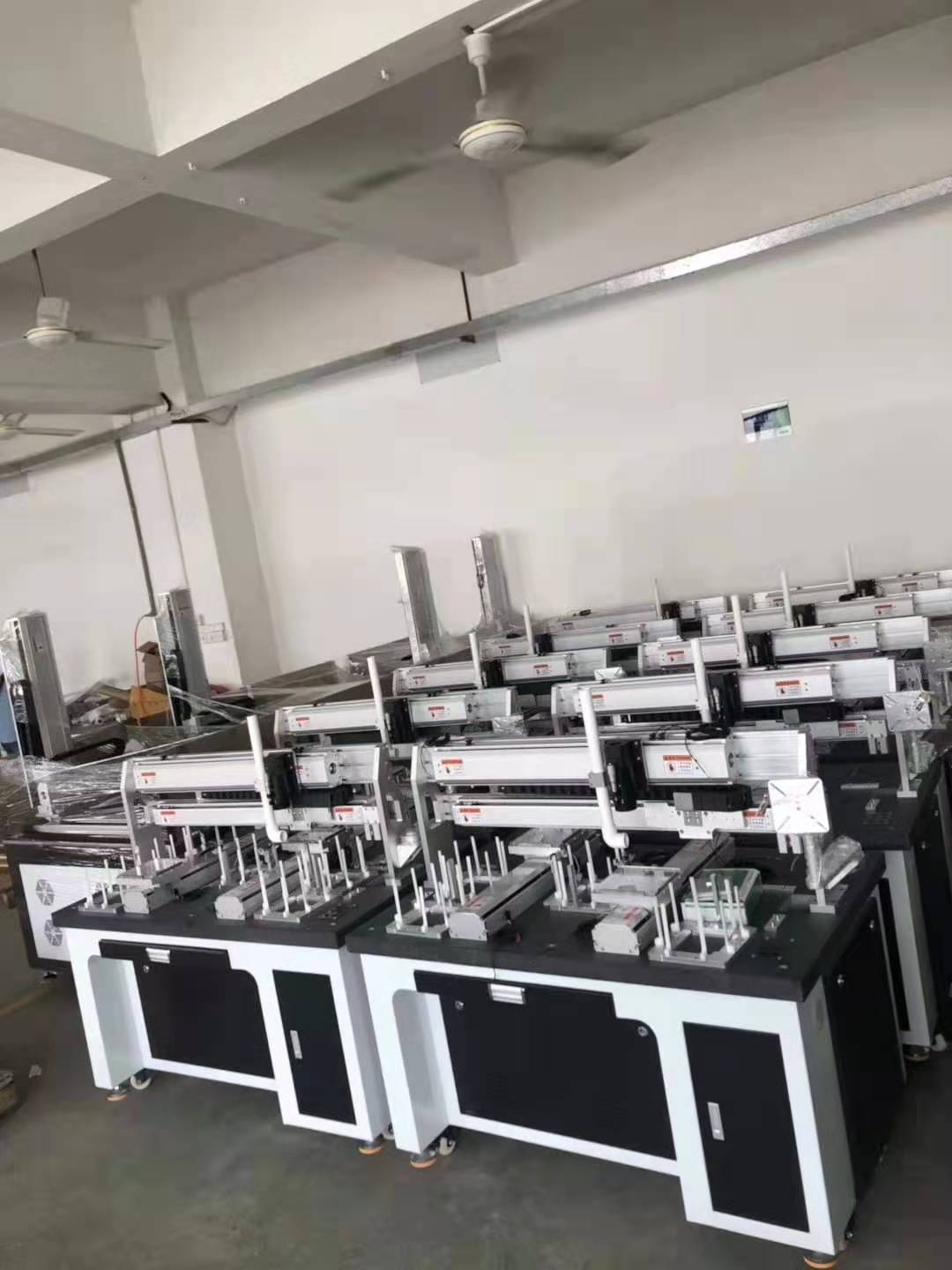

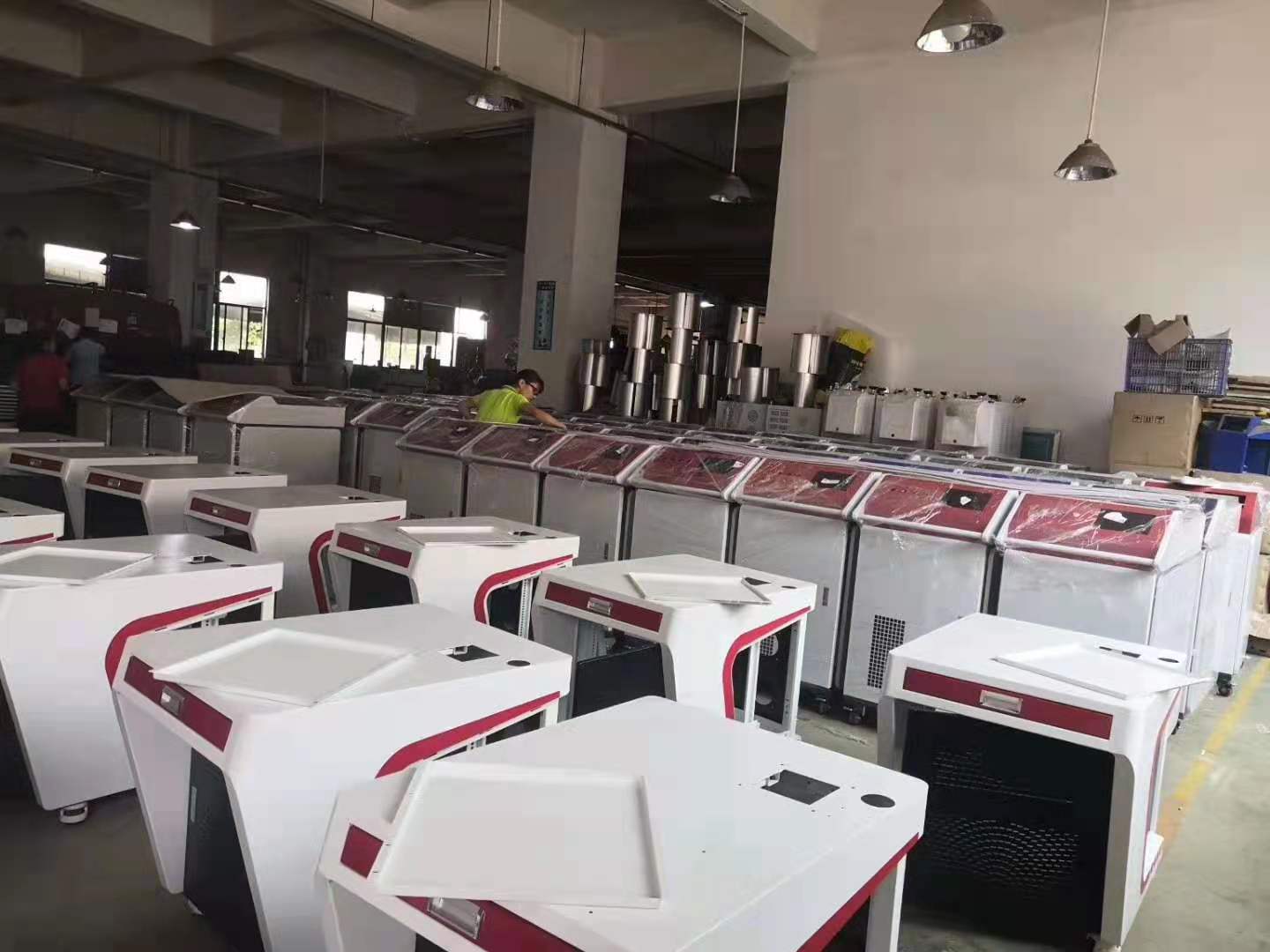

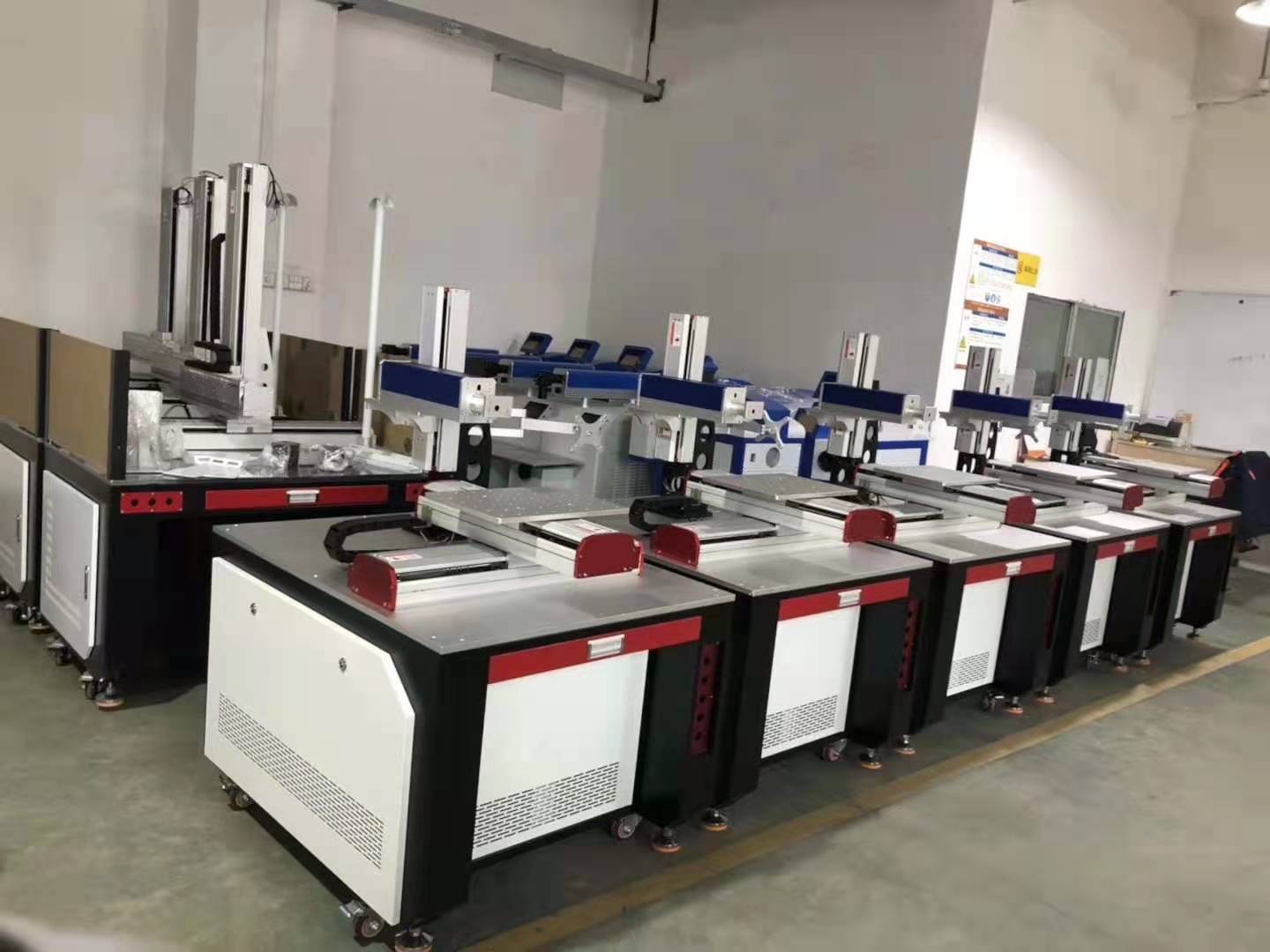

Factory pictures

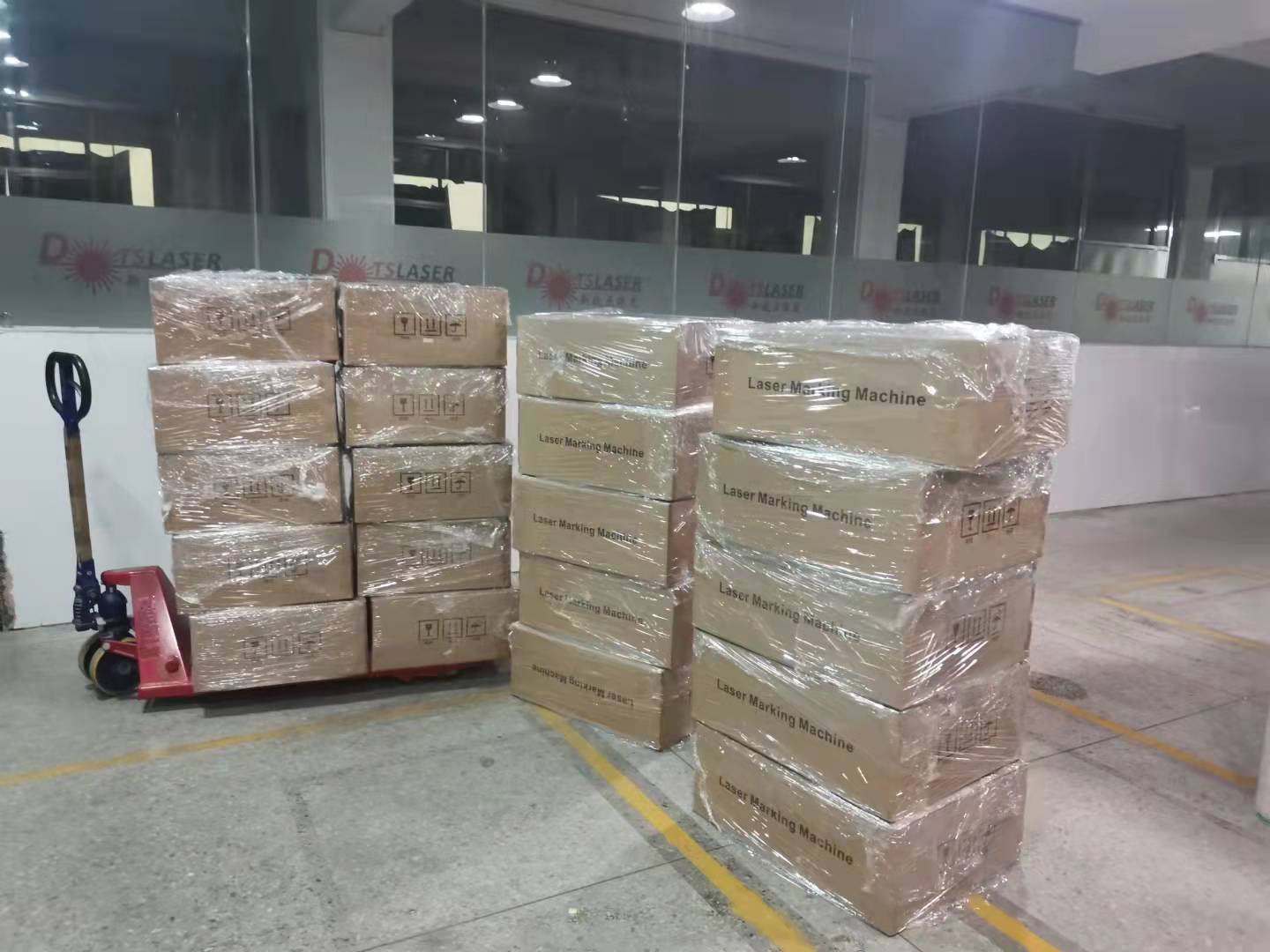

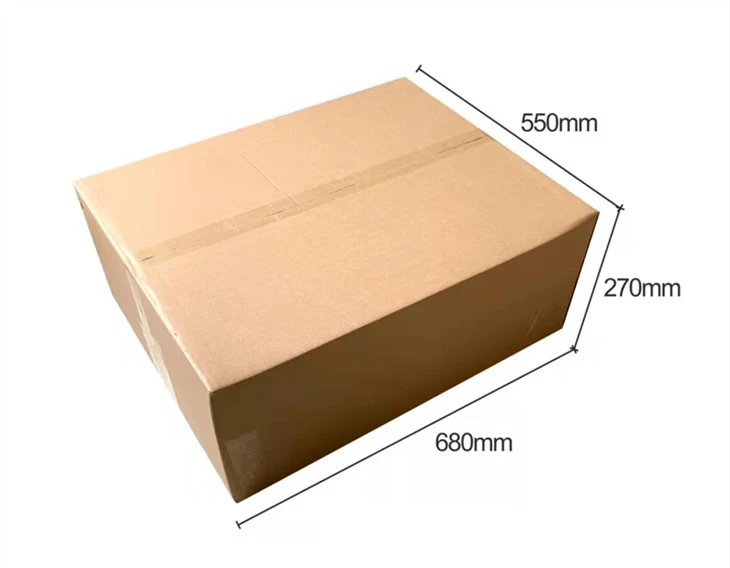

Machine packaging show
FAQ
Q1: what main product are you producing?
Q2: Your company is factory or trading company?
Q3: How can I get a quote from you?
