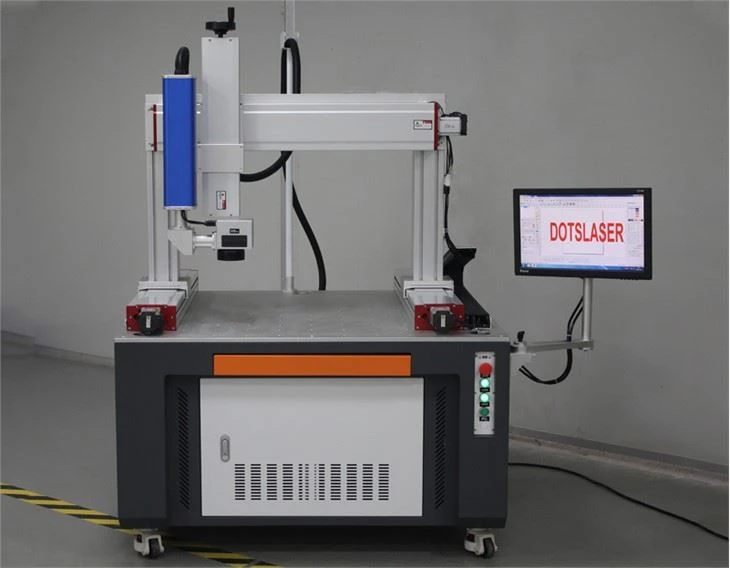

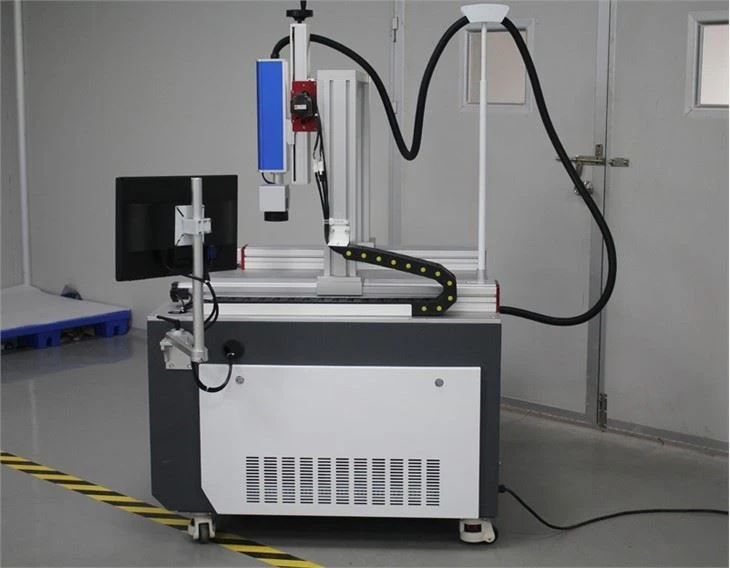

Large Area Fiber Laser Engraver
Large area fiber laser engraver
Products Description
Large area fiber laser engraver is suitable for customers who have a large area of compliance requirements. Our products need to be customized, because the area is not used, the laser and power intensity of the workpiece material will be different. There are four main types: large-format lens laser marking machine, XY electric platform stitching laser marking machine, dynamic large-format laser marking machine, large-format non-splicing platform laser marking machine. These four devices have their own advantages and disadvantages, which are suitable for different occasions and meet different needs.
Main parameter：
| Model | DS-LM50/DS-LM60/DS-LM80/DS-LM100 |
| Laser power | 50W,60W,80W,100W |
| Laser wavelength | 1064nm |
| Repeat accuracy | ±0.003mm |
| Working area | 400x400mm,600x600mm,800x800mm,900x900mm,1000x1000mm,1200x1200mm, more wide area need to be customized. |
| Cooling Mode | Air cooled |
| Machinery Test Report | provided |
| Video outgoing-inspection | provided |
| Core Components | Laser generator |
| Warranty | 1 year |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
machine details

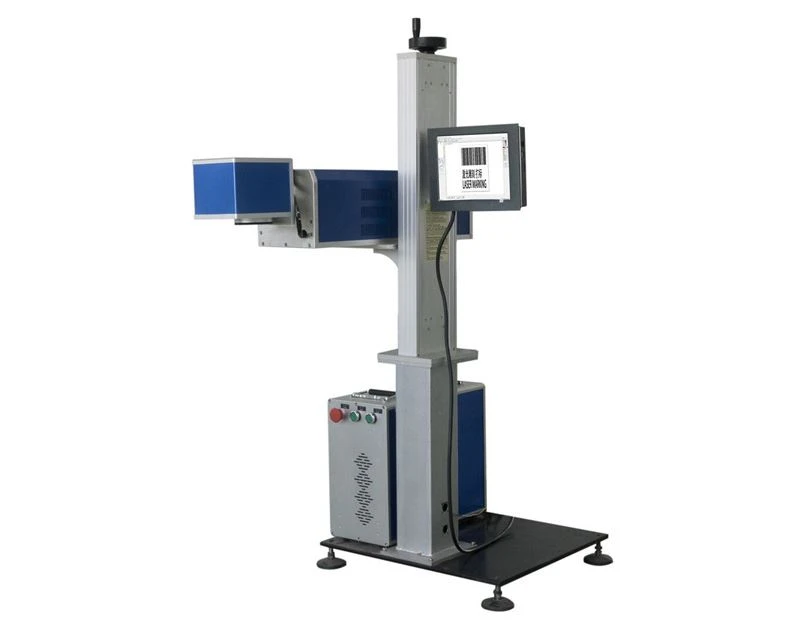

1. large-format lens-type
This versatile marking machine utilizes laser technology to achieve precise marking simply by changing the lens. It is a popular piece of equipment due to its flexibility and effectiveness. The standard working range typically includes 100*100mm, 160*160mm, and 200*200mm options. For larger marking areas, such as 400*400mm and 600*600mm, customization can be requested to meet specific requirements.
Be mindful of the depth requirement when using the laser, as increasing the range may diminish the power of the laser on the processed surface. By zooming in the lens, the focal length will be extended, making the use process straightforward and effective. This method is cost-effective, as it only requires changing the lens.

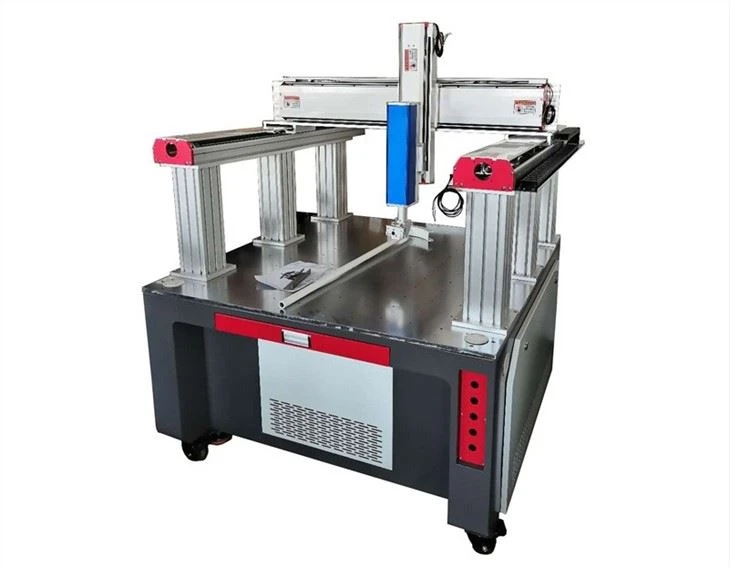

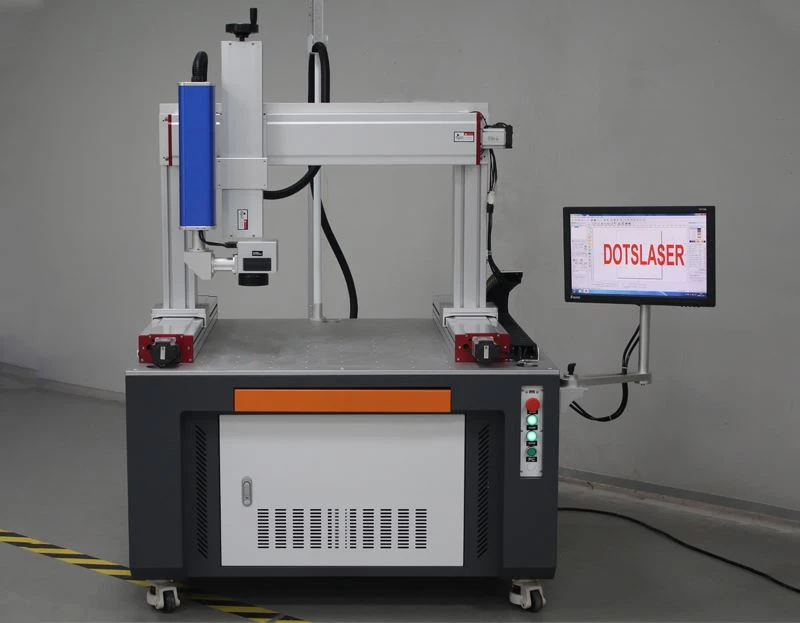

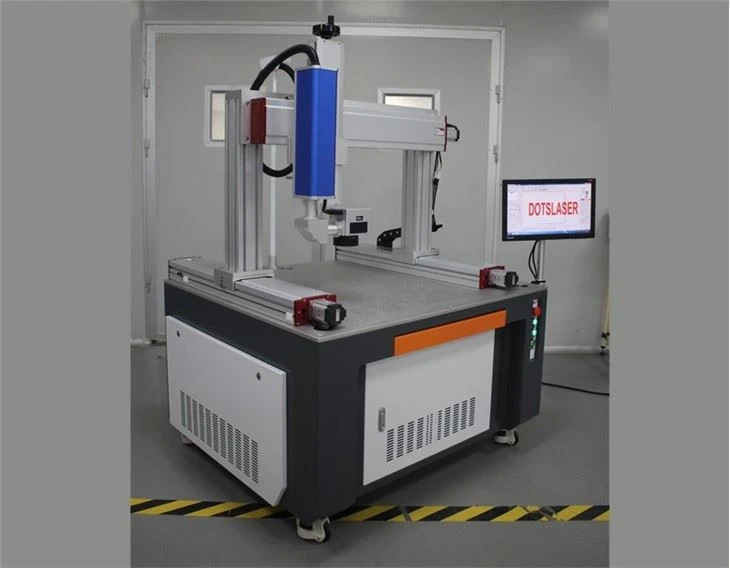

2. XY motorized platform splicing laser marker.
This design focuses on marking a specific area, adjusting the platform, and repeating the process to seamlessly stitch together each part. The lines are sleek and the compact field lens frame enhances the overall aesthetic appeal.
There may be some slight imperfections in its precision, which could result in instances where the seams are not perfectly aligned or easily visible. The cost is also on the higher end, requiring the use of multi-document referencing and certain control cards may not fully support the features.

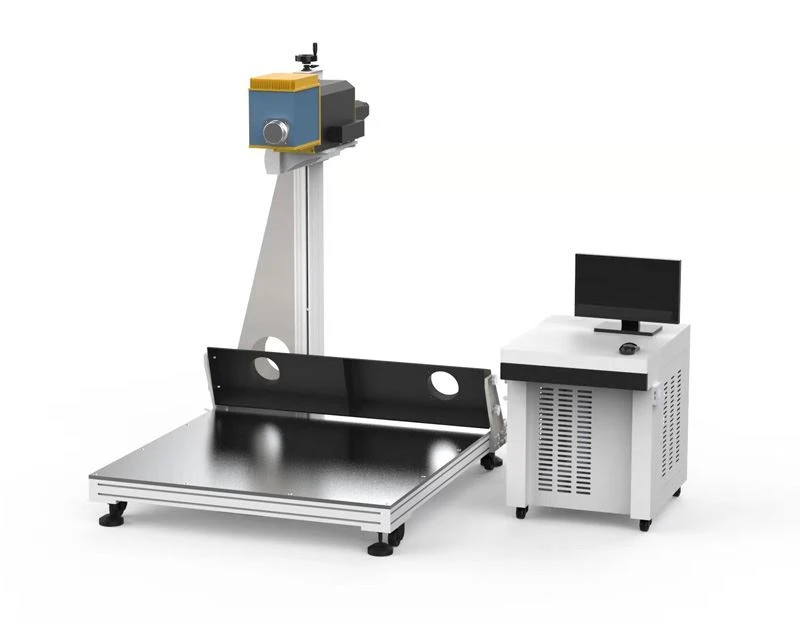

3. dynamic large-format
One of the benefits of this device is its ability to maintain the integrity of large-format edges while being able to easily and quickly comply with fine details. Additionally, it does not require a lens, only a protective one. The complete system, which includes a galvanometer, control card, software, and more, is perfectly suited for use with CO2 laser marking machines.

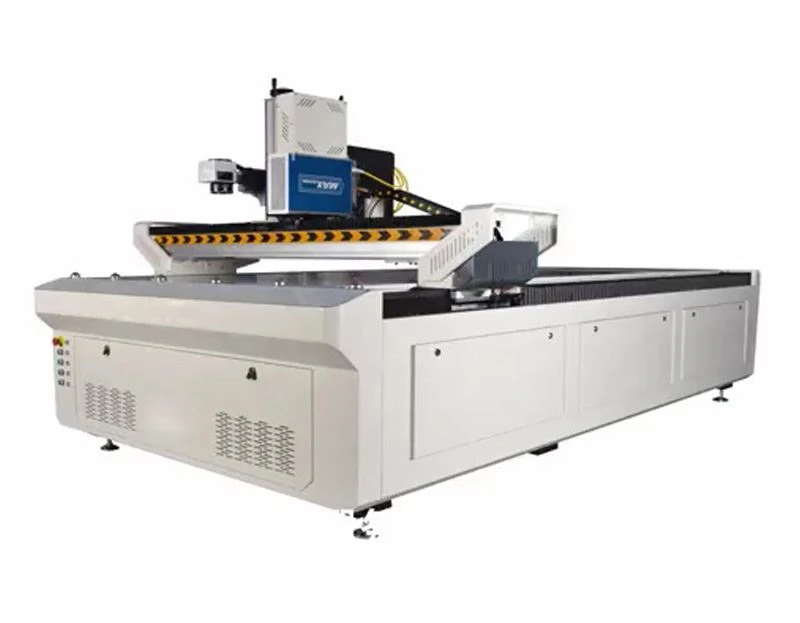

4. large-format non-splicing platform
One of the benefits of this device is its ability to maintain the integrity of large-format edges while being able to easily and quickly comply with fine details. Additionally, it does not require a lens, only a protective one. The complete system, which includes a galvanometer, control card, software, and more, is perfectly suited for use with CO2 laser marking machines.

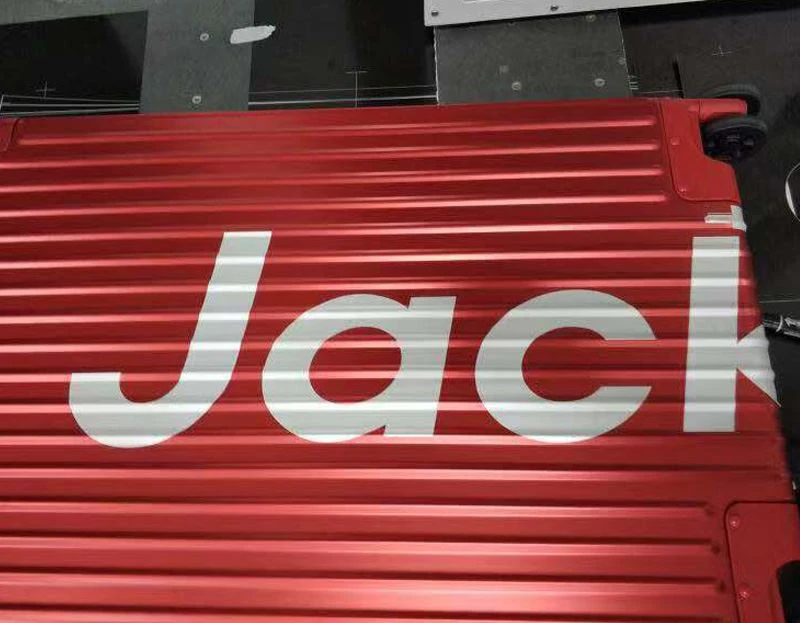

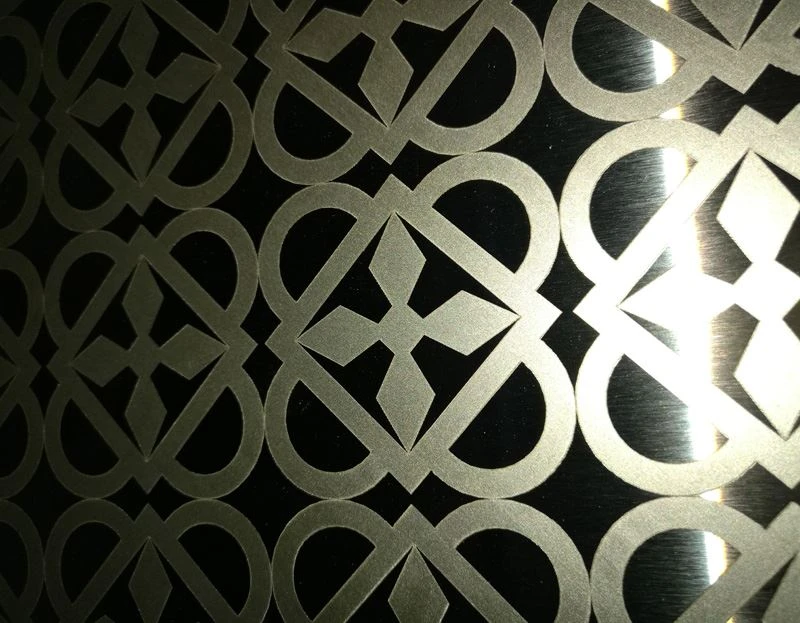

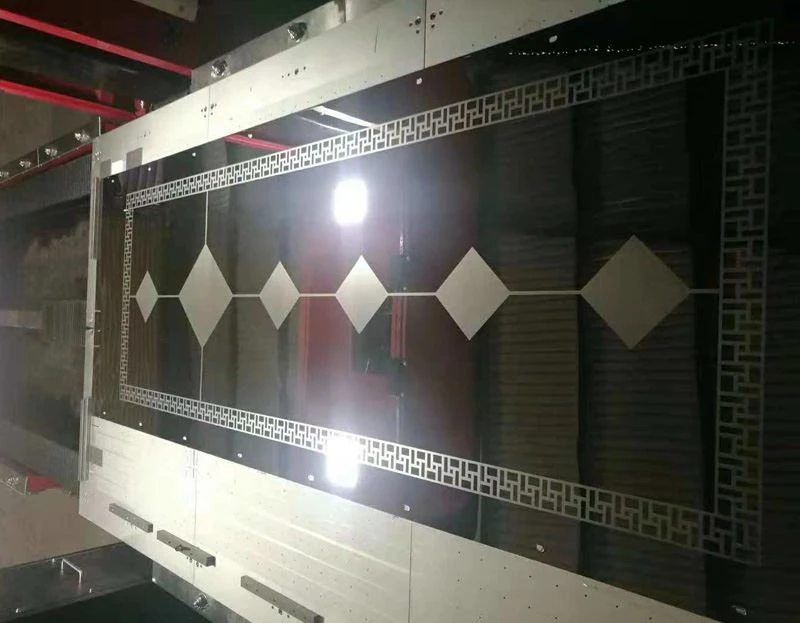

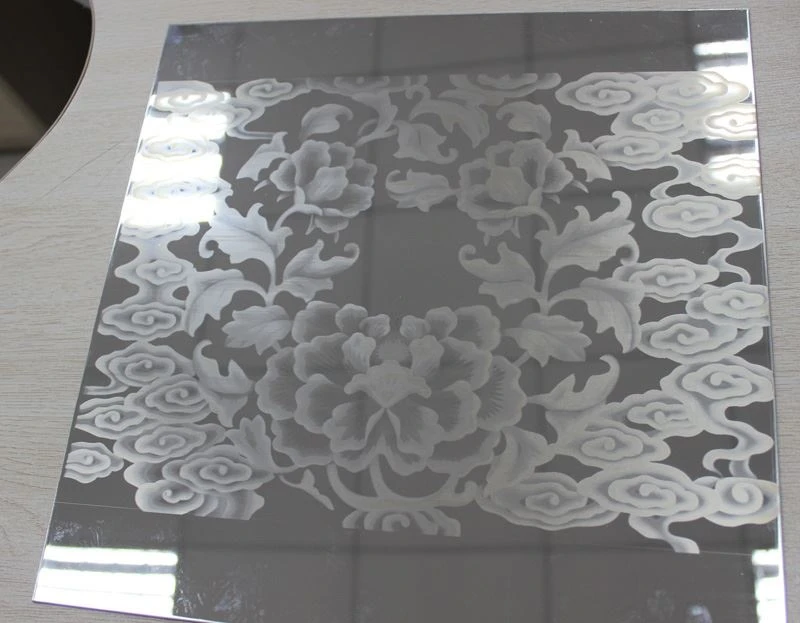

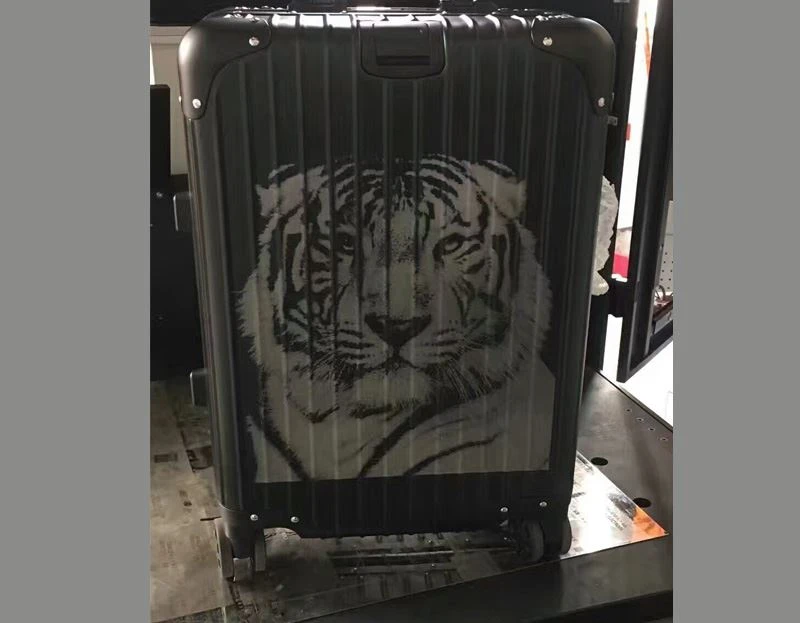

Samples of large area fiber laser marking machine
package
FAQ
Q1: Which type large area laser marking machine is suitable for me?
Q2: What delivery time it will take?
Q3: How should we do if we don' t know how to use?
