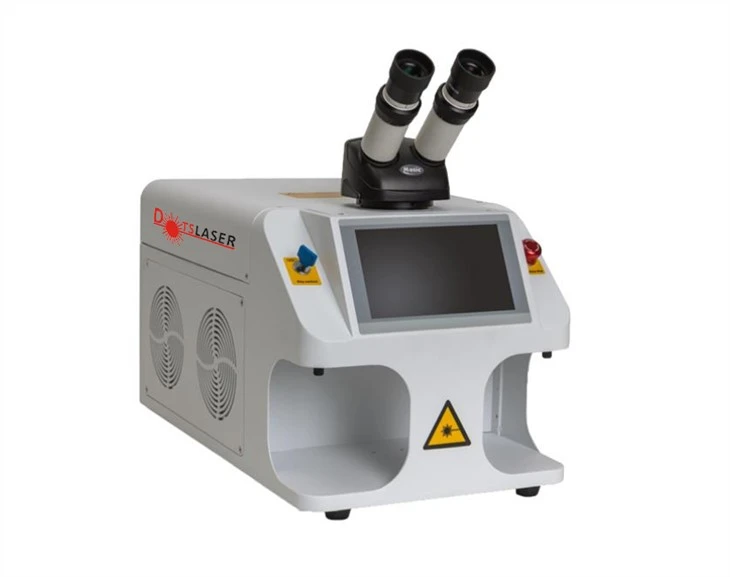

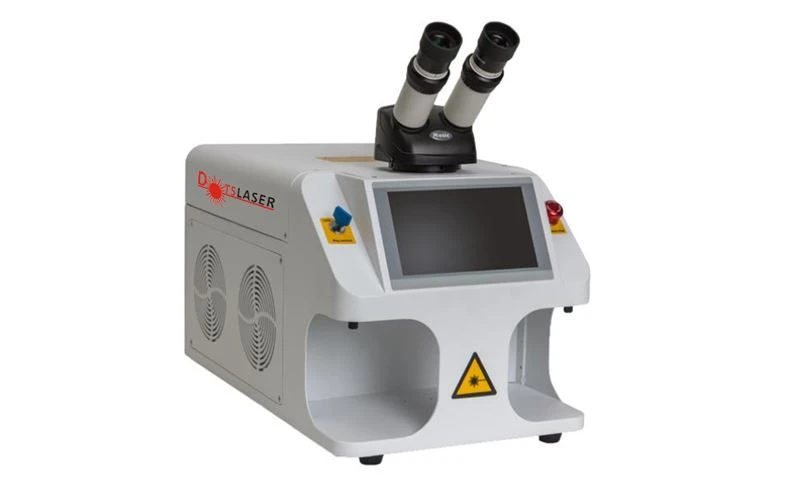

Jewelry Laser Welding Machine
Jewelry Laser Welding Machine
Products Description
Jewelry Laser Welding Machine is a device that is widely used in important links in the application of laser material processing technology. The main principle of this equipment of ours is to heat the surface of the workpiece through laser radiation through heat conduction, and to diffuse the surface heat to the inside through thermal conduction, and to control the laser pulse. Jewelry Laser Welding Machine is mainly used for filling holes and spot welding sand holes of gold and silver jewelry.
Featurers
1. The width, energy, peak power and repetition frequency of this equipment can be controlled within a large range, which can melt the workpiece and form a specific molten pool to achieve a variety of welding effects.
2. Jewelry Laser Welding Machine adopts the ceramic condenser imported from Britain, which makes it have the characteristics of corrosion resistance, high temperature resistance and high photoelectric conversion efficiency.
3. The parameters are adjusted by the control rod in the enclosed cavity, which is simple and efficient.
4. It adopts an automatic shading system, which can effectively reduce eye irritation.
5. Our products have the ability to work continuously for 24 hours, stable performance, durable, and maintenance-free within 10,000 hours.
6. Its design is reasonable, adopts humanized design, accords with ergonomics, and will not feel excessive fatigue after long-term use.
Application
1
rings, pendants, bracelets, dentures, mobile phone charger interfaces
2
spectacle frames, especially used for repairing holes in gold and silver jewelry
3
Technical paramters
| Model | DS-LW200 |
| Laser power | 200watts |
| Max.single pulse energy | 90J |
| Laser type | Nd:YAG |
| Pulse width | 0.3~ 20ms |
| Laser welding frequency during continuous fire | 0~50Hz |
| Adjustable range of spot size | 0.2~3mm |
| Power consumption | ≤6KW |
| Power supply | 220V±10%/50Hz |
| Control system | Industrial Control System |
| Observation System | 10 times microscope |
| Protective gas | Argon |
| Consumables | Xenon lamp, filter element, protective lens, argon gas, water, electricity |
| Temperature | 55°F(13°C)-82°F(28°C) |
| Humidity | 5%-75%no frost |
| Dimension |
Host 108mm*62mm*122mm Water chiller: 63mm*44mm*80mm |

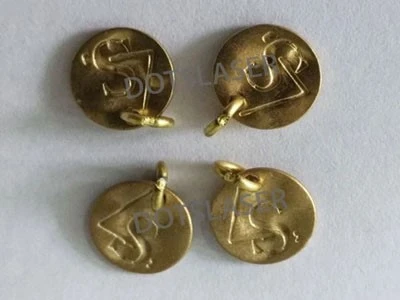

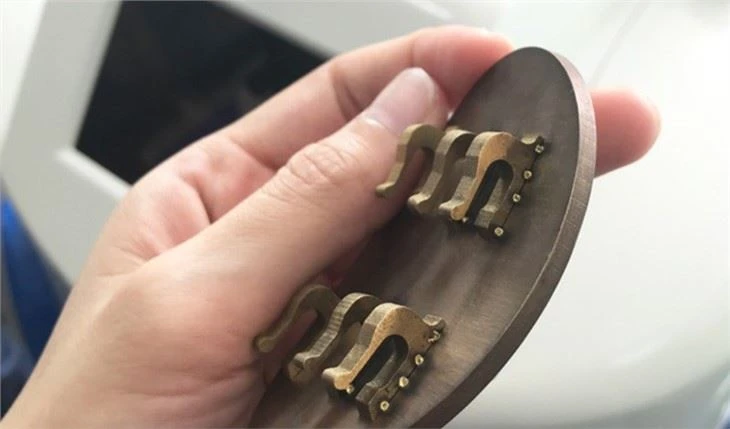

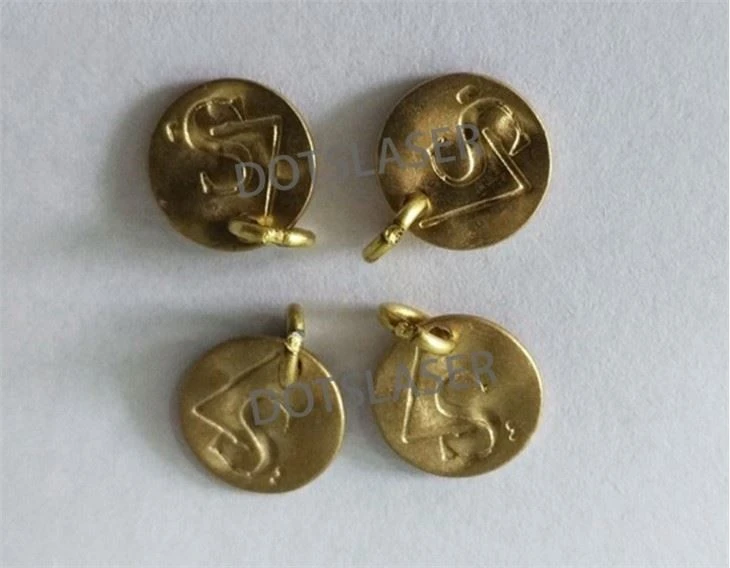

Samples show

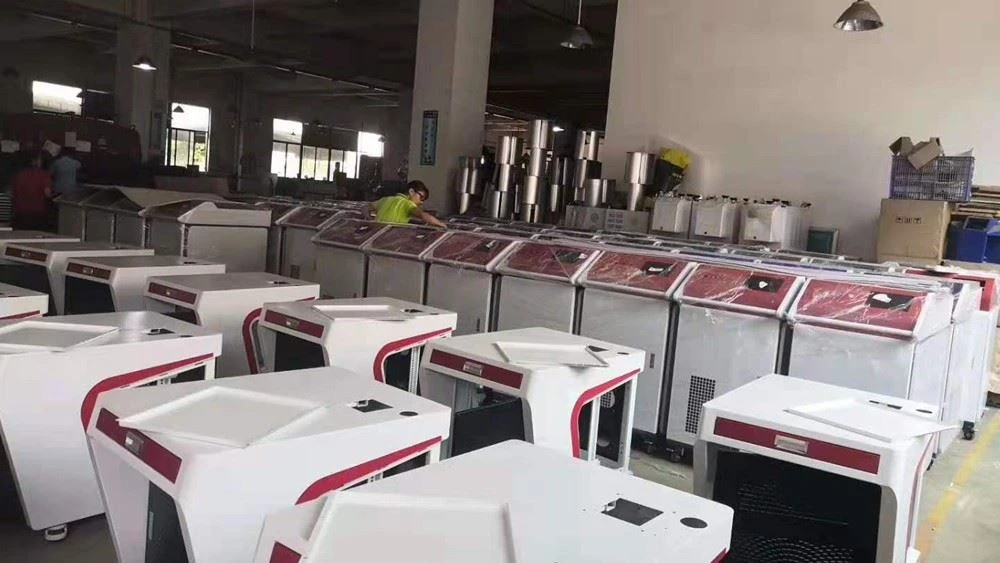

One of workshops of dotslaser
What can you get from the welding machine?
Avoid risky torch work by using the precision of a laser.
Keep all the profits for yourself instead of outsourcing work.
Reduce repair times by up to 50% and finish most jobs in under an hour.
Use convenient presets for metal type and operation.
Get 70–80% stronger repair welds by fusing metal to itself.
Expand repair business to eyeglasses, watches, medical tools, and more.
Shipping and package
