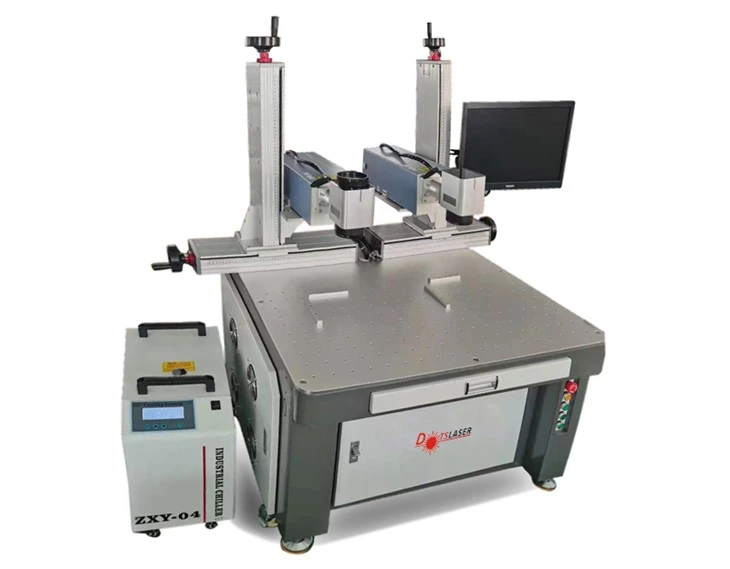

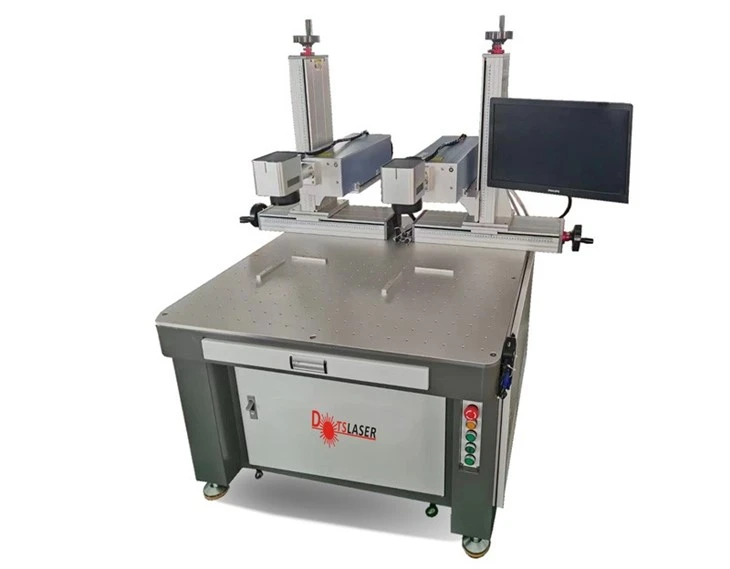

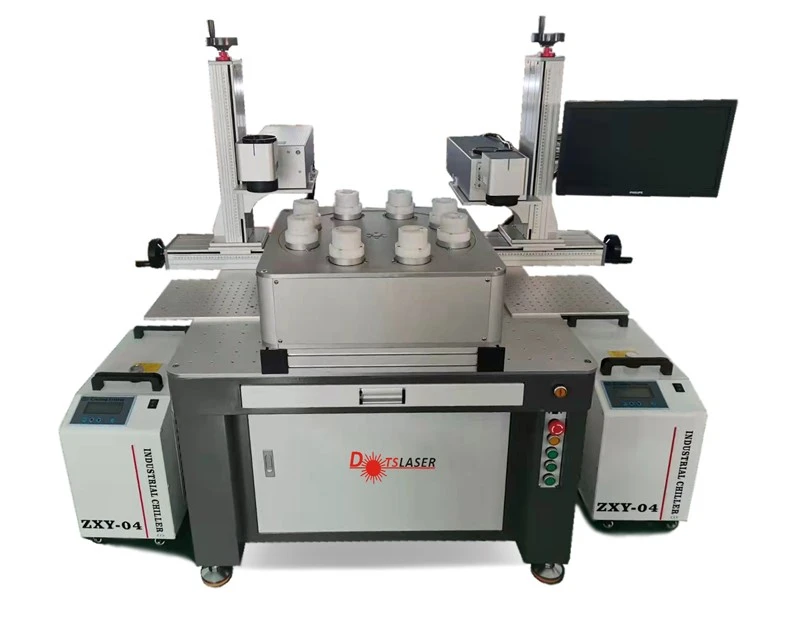

Dual Head UV Laser Marker
Dual Head UV Laser Marker
Products Description
A dual head UV laser marker is a type of laser marking system that utilizes two ultraviolet (UV) laser sources independently or in conjunction. These systems are primarily used for marking, engraving or micro-processing applications, particularly on sensitive and heat-affected materials.
UV lasers produce a very short wavelength (typically around 355 nm), which allows for high-precision and minimally invasive marking or material removal. This results in very little heat being transferred to the surrounding material, making UV laser markers an ideal choice for sensitive materials such as plastics, glass, ceramics, or thin films.
Increase productivity and efficiency within marking or engraving applications.
Utilizing two laser heads simultaneously allows for greater coverage area and faster processing times, as two sections of the workpiece can be processed at the same time.
The individual heads can also be programmed to conduct separate tasks, if needed, for applications requiring diverse markings or engravings within a single workpiece.
Technical paramters
|
NO. |
Name |
Dual Head UV Laser Marker |
|
1 |
Machine model |
DS-UV5,DS-UV10,DS-UV15 |
|
2 |
laser power |
＞5W;＞10W;15W |
|
3 |
laser wavelength |
355 nm |
|
4 |
Pulse energy(µJ) |
＞200 |
|
5 |
Repetition rate |
20~150KHz |
|
6 |
Pulse duration |
＜15ns@30KHz/＜18ns@30KHz |
|
7 |
Beam quality |
＜1.2㎡ |
|
8 |
Beam diameter |
~0.45mm |
|
9 |
Laser level |
Class 4 |
|
10 |
Repeat accuracy |
±0.001mm |
|
11 |
Min.line width |
0.01mm |
|
12 |
Min.character size |
0.15mm |
|
13 |
Marking speed |
≤8,000mm/s |
|
14 |
Working area |
100x100mm(standard)/150x150mm/300x300mm |
|
15 |
Cooling |
Air/Water cooled |
|
16 |
Working environment temperature range |
15~35 ℃ |
|
17 |
Humidity range of working environment |
20~80% non-condensing |
|
18 |
working voltage |
220V,50/60Hz |
|
19 |
Power consumption |
≤800W |
How to choose dual head UV laser marker ?
Laser power
Ensure that the UV laser sources provide sufficient power for your particular application.
Precision and accuracy
Confirm that the system can achieve the level of precision and accuracy required for your project.
Scanning speed
Evaluate whether the scanning speed meets your productivity and efficiency requirements.
Compatibility
Ensure that the dual head UV laser marker is compatible with your existing hardware and software systems.
Reliability and support
Choose a reputable brand with a track record of reliable equipment and good customer support.
Remember that specific applications may also require additional features or components, such as a fume extraction system, safety enclosures, or robotic systems for part handling or orientation.
Applicable industry
Various glasses and plastic products such as electronic components, food packaging , integrated circuits (IC), electrical appliances, mobile communications , jewelry , building materials , PVC pipe , PPR pipe, medical equipment etc.
Warranty
1 Year for the whole machine except consumable parts(computer,mirror,switches,cables).
Lifelong maintenance and spare parts supply
Free training for operation staffs in our side. (engineer go abroad has to be negotiated.)
Professional service team , Helping you to solve after-sale problems at any time, Quick response and giving solution within 24hours .
If need our technician go to your side for installation and training, you need to bear all cost of our technician go to your side, including round air ticket,hotel and food,etc.

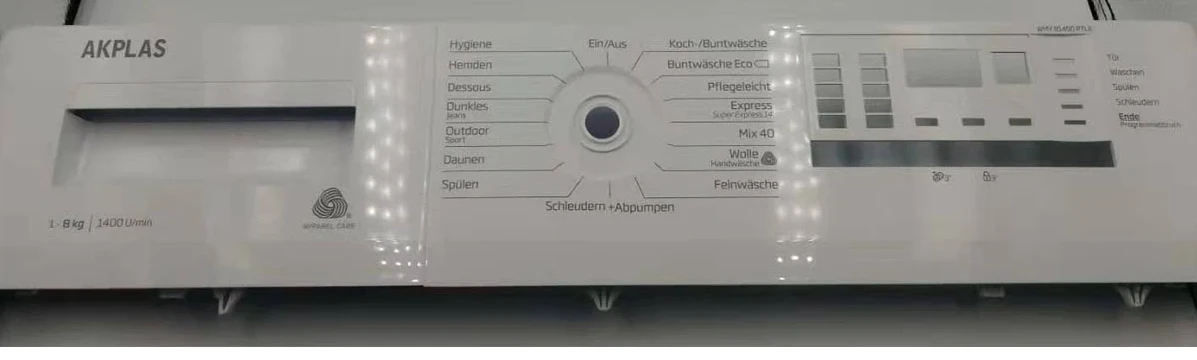

Sample show of Dual Head UV Laser Marker
Packaging&shipping.
Company patent certificate and honorary certificate
